Thermionic Culture EARLYBIRD-2.2 Dual Channel Preamp with EQ

OUR PART #: EARLYBIRD-2.2 MFR #: Earlybird 2.2

Copied to clipboard

The Earlybird 2.2 is a two channel all valve preamp employing a balanced push-pull circuit, which is unique in this application. ...Read more

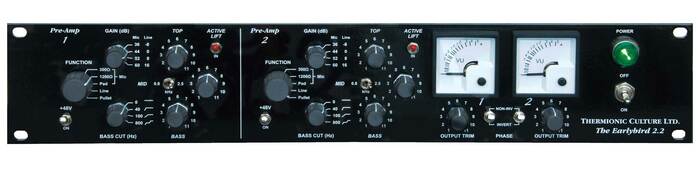

Thermionic Culture EARLYBIRD-2.2 Dual Channel Preamp With EQ Image 1
Thermionic Culture EARLYBIRD-2.2 Dual Channel Preamp With EQ Image 2
Thermionic Culture EARLYBIRD-2.2 Dual Channel Preamp With EQ
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The Earlybird 2.2 is a two channel all valve preamp employing a balanced push-pull circuit, which is unique in this application. The use of this type of circuit gives very low noise and plenty of headroom with minimal distorion. These factors coupled with a switchable input impedance will mean the user can get a very natural interpretation of whatever sound the microphone is picking up, whether the mic is valve, ribbon, moving coil or FET.

After much dedicated development work in conjunction with Brain Sowter, we have arrived at the pinnacle of audio transformer design. Both the input and output transformers have been optimized for use in this unique circuit. This results in more headroom and lower distortion especially at low frequencies.

The Earlybird 2.2 retains all of the features of the previous Earlybirds. Thermionic Culture has added an extra pair of inputs to allow permanent connection to a Pullet EQ. The Active EQ section has unique "Varislope" curves for both bass and top lift, where the extreme frequencies (ie. low bass and high top) are accentuated as the control is increased. The mid lift is quite broad in operation and peaks at 800Hz and 2.5kHz. When used in conjunction with top lift can provide some very useful results. The 800Hz "shelving" bass cut used in conjuntion with bass lift can provide a mid cut if required.

The Earlybird 2.2 need not stand idle once the mixing process has begun. The line input facility means that the sonic characteristics and EQ facilities of Earlybird 2.2 can be fully utilized on any mono or stereo signals that the user feels may benefit from such enhancement. With this in mind the Pullet acts as a perfect companion for precision mid range EQ.

SPECIFICATIONS

  • Input Impedance:
    • Mic: 300 or 1200 ohms, switchable , balanced.
    • Pad: 1.8kO
    • Line: 12.7kO
    • Pullet: 1.2kO
  • Output Impedance:
  • Maximum Gain: 62dB
  • Maximum Output Level: +33dBm (36V RMS)
  • Phase Shift: HF - 16 degrees (4.5%) at 10kHz // LF: 0 within audible range
  • Distortion (THD): 1kHz - 0.005% // 100Hz - 0.007%/0.012%
  • Frequency Response: +/-0.5dB - 11Hz to 26kHz // +/-1dB 8Hz to 65kHz
  • Total Noise, Unweighted, 30kHz filter: 114dB below MOL
  • EQ, Active Controls at Max.: Bass - +17dB at 50Hz // Mid - +15dB at 800Hz & 2.5kHz // Top - +20dB at 10kHz
  • Mid Frequency Selector: 800Hz & 2.5kHz
  • Gain Settings (dB): Mic - 36, 44, 52 & 60 // Line - -8, 0, 8 & 16
  • High Pass Filter (Hz): 0, 40, 100, 800
  • Output Trim: -18 dB to 0 dB linear reverse attenuator
  • Input and Output Connectors: 8 x 3pin XLRs, wired balanced. ( 2x mic in, 2x line in, 2x pullet in, 2x line out )
  • Fuses: 115V: T1.25A // 230V: T0.63A
  • Valve Complement
    • Input: ECC83 (equiv. 7025, 12AX7LPS)
    • Output: ECC82 (equiv. 6189, 12AU7)
