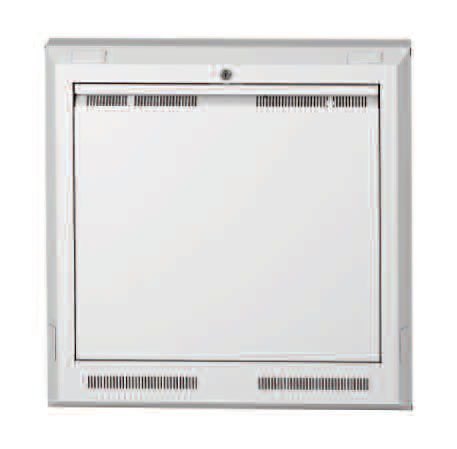

Lowell LWTR-3S
Surface Wall-Mount Tilt-Out Rack

OUR PART #:  LWTR-3S

The LWTR is ideal for wall installation of rackmount and non-rackmount electronics in schools, training facilities, retail stores or similar areas.
Learn More
Our Price: $378.35
List Price: $557.10
You save 32%!
Write the first review.
Lowell LWTR-3S
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The LWTR is ideal for wall installation of rackmount and non-rackmount electronics in schools, training facilities, retail stores or similar areas. Suitable for installation in brick, concrete block or stud wall construction.

Features:

  • Backbox and rack frame boxed separately.
  • One pair of adjustable (7-position) rails, tapped 10-32
  • Two adjustable-height hold-down brackets secure non-rackmount consumer gear.
  • Vent slots at bottom and top (beneath integral handle)
  • Knockouts for conduit access (.875" on surface model and .5-.75" on recessed model)
  • Key-lock
  • Device cutouts with factory installed cover plates: (3) framemounted and (2) internal for installation of optional Decora┬«-style devices (low-voltage only).
  • Two steel hinges provide solid support when opened to the 90- degree service position.
  • Panel mounting hardware: PilotPoint screws & captive washers.
  • Includes E.O. box in bottom
  • Steel construction with beveled edges and neutral Network Grey wrinkle powder epoxy finish
  • Panel Space: 3U (5.25")
  • Accepts equipment up to 19"W x 5.25"H x 17.5"D

Note: some electronic devices may require rack to be in full-open (90-degree) service position to operate correctly.

Specifications:

  • Backbox: 29.125"W x 29.125"H x 4"D
  • Rack Frame: 29.06"W x 29.06"H x 1.81"D
  • Projection from Wall: 5.81"
  • Overall: 29.125"W x 29.125"H x 5.81"D
