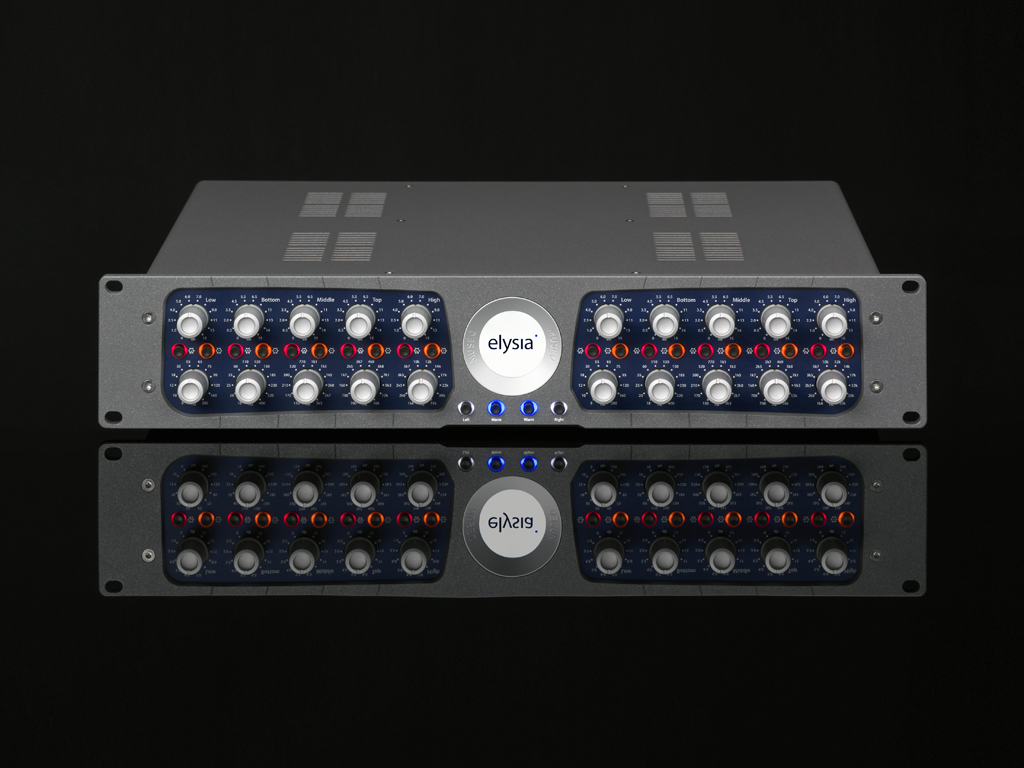

Elysia MUSEQ
Equalizer, 2 Channel

OUR PART #:  MUSEQ

This analog EQ is a combination of premium sound shaping capabilities with optimally matched parameters and the highest quality components...
Learn More
Our Price: $5,299.00
List Price: $5,499.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Elysia MUSEQ
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

This analog EQ is a combination of premium sound shaping capabilities with optimally matched parameters and the highest quality components, enabling the user to find musical results quickly and easily. The five bands and their ample gain ranges as well as some special features make sure that the museq can be used flexibly in any tracking or mixing situation, and the stepped controllers are easily repeatable for mix bus or mastering applications.

Each of the two channels offers three parametric bands with a two-position switchable Q. The outer bands per side are low/high shelf designs which can be separately switched into a low/high cut mode. In the cut mode, a resonance peak keeps the knee frequency from sounding overly damped, reminiscent of inductor circuits in classic designs.

Each of the five gain controllers per side can be altered from boost to cut with a single switch, for easy location of problem frequencies and twice the number of available gain steps. Each channels has a switchable option for adding strong harmonic color of the signal, making two EQs in one. Many will prefer the color setting for mix use and the clean for tracking, but this is up to you to discover.

The circuit design of the museq is 100% discrete analog technology. All signal processing is realized with single transistors in permanent class-A mode, and even the power supply is composed of fully discrete circuits. An oversized transformer, selected capsuled conductive plastic potentiometers as well as special current feedback amplifiers are part of the technical refinement. The combination of these elements aims at maximum signal quality and guarantees clean and powerful sound characteristics even when extreme settings are used.

Features:

  • 100% Discrete Class-A - As a true elysia specialty, the museq is completely based on discrete circuitry and does not use any integrated circuits at all.
  • Active Bandpasses with FETs - The filter stages are completely active and benefit from a puristic design approach without coupling capacitors – the basis for a truly musical EQ.
  • Resonance High & Low Pass Filters - The outer shelving filters can be switched into low and high pass filters which feature an additional resonance peak as a very useful specialty.
  • Parallel Filter Design - A special circuit trick makes it possible to leave the high and middle frequencies completely untouched when using the high and low pass filters.
  • Warm Mode - The museq offers a second, switchable sound flavor by altering its frequency spectrum, harmonics and transient response.
  • Pure Transparency Path - The puristic design of the filter stages with current feedback amplifier stages and without any coupling capacitors results in an outstanding sound quality.
  • Boost/Cut Mode - The boost/cut switch generates twice the number of values to be set with the 23 step potentiometers than the usual -/0/+ arrangement would offer.
  • Switchable Filter Quality - The filter quality can be switched from a wide to a narrow Q factor which remains independent from the setting of the gain controller.
  • Stepped & Matched Potentiometers - All potentiometers in the museq have 23 steps and are matched to build stereo pairs by a software routine that has been written just for this purpose.

Specifications:

Frequency response:                  <10 Hz - >200 kHz (-0.2 dB)
Low Band (Shelf Filter):  9 - 200 Hz (+/-15 dB)
Low Band (Cut Filter) 9 - 200 Hz

Bottom Band (Peak Filter):  18 - 400 Hz (+/-15 dB)
Quality factor (Q) 1.3 (wide) and 0.5 (narrow)

Middle Band (Peak Filter): 150 Hz - 3.5 kHz (+/-15 dB)
Quality factor (Q)  1.3 (wide) and 0.5 (narrow)

Top Band (Peak Filter): 700 Hz - 16 kHz (+/-15 dB)
Quality factor (Q) 1.3 (wide) and 0.5 (narrow)

High Band (Shelf Filter):  1.8 - 35 kHz (+/-15 dB)
High Band (Cut Filter)  1.8 - 35 kHz

THD+N:
@ 0 dBu, 20 Hz - 22 kHz  0.0037 %
@ +10 dBu, 20 Hz - 22 kHz  0.0038 %


Noise floor:
20 Hz - 20 kHz (A-weighted) -91.6 dBu

Dynamic range:
20 Hz - 22 kHz  119 dB

Maximum level:
Input +27 dBu
Output  +27 dBu


Impedance:
Input 10 kOhm
Output  68 Ohm
