Lowell LPR-2427FV Portable 24 Unit Rack with Fully Vented Door, 27" Deep, Black

The UL Listed (Standard 1678) portable rack is ideal for schools, training facilities, studios, educational facilities, small offices and institutions of all kinds that require an equipment rack with mobile convenience and locking security. The LPR is 22" deep with panel space of 14U or 21U. Rack includes heavy-duty casters, side panels with recessed handles, recessed rear door, surface-mount front door (choice of style), and onepair of adjustable mounting rails tapped 10-32 (PilotPoint™ hardware included). Rails can be field-reversed to access square-punched holes for alternate hardware needs (12-24, 6mm or 10-32 screws with cage nuts). Vented sides, vented rear door (top and bottom) and vents in the frame above and below front door allow passive heat dissipation. Black wrinkle powder epoxy finish.

Features:

• Welded 16-gauge certified U.S steel with 14-gauge steel bottom, reinforced at all load-bearing junctures.
• Wire management features include abundant cable lacing holes and removable knockout panels above and below rear door (.5" knockouts for BNC wireless antenna, compound knockouts for conduit size .75"-.5" and 1.5"-1" and a blank project panel). There is also generous open space for managing wire between front mounting rail and front-to-rear supports.
• Surface-mount front door with key-lock is offered in three styles: solid steel, steel frame with smoked Plexiglas insert, or fully-vented (see model numbers and descriptions below).
• Recessed, vented rear door with key-lock.
• Heavy-duty 4" rubber swivel-casters have 225 lbs. load rating each (900 lbs. total) to absorb shock and smoothly transport equipment over varied surfaces (1-pair swivel, 1-pair swivel-locking).
• One-pair, adjustable mounting rails with dual-hole pattern (10-32, 12-24, 6mm) to accommodate several hardware preferences.
• PilotPoint™ screws with captive washers (mounting hardware).
• Made in U.S.A.

Specifications:

• Rack Units: 24
• Panel Space: 42.13"
• Rack D: 27"
• Overall D: 28"
• Usable D: 24.34"
• Rack H: 48.13"
• Overall H: 53.25"
• Overall W: 23.06"

Note:

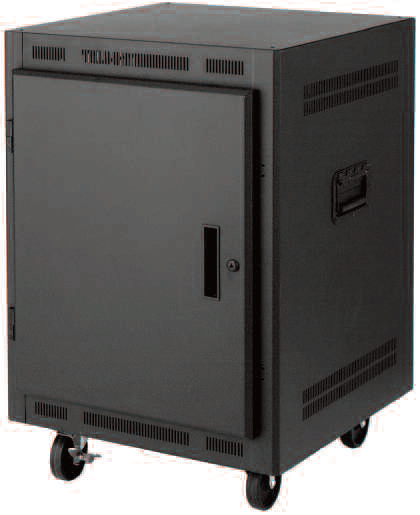

Product shown in image is equipped with a solid steel front door, this item has a fully-vented steel door.
