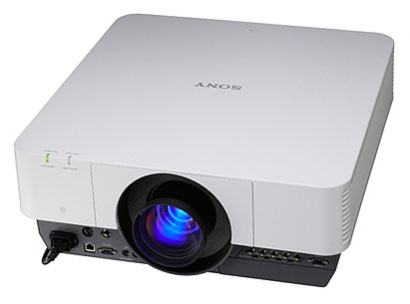

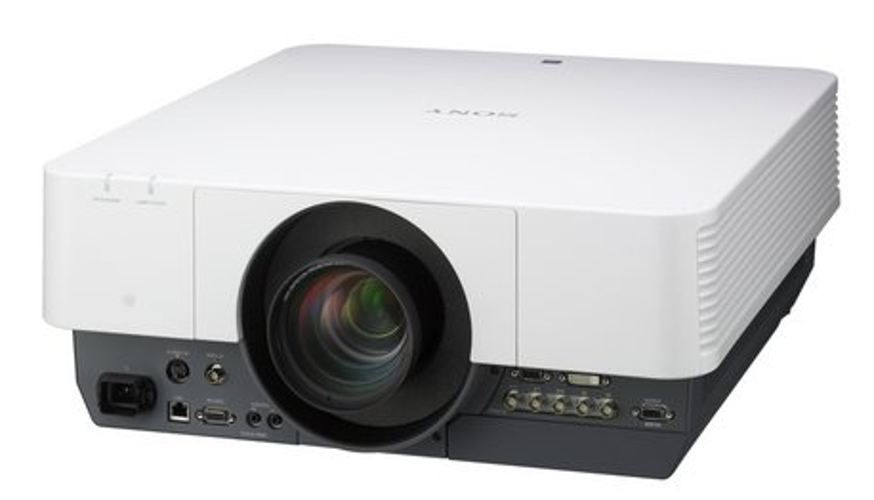

Sony VPL-FH500L
WUXGA Projector, 7000 Lumens


Sony's VPL-FH500L's outstanding portfolio of features allows it to offer class-leading projection performance even in the most challening environments.
Learn More

Call for Details

Similar Products

Sony's VPL-FH500L's outstanding portfolio of features allows it to offer class-leading projection performance even in the most challening environments. Its 7,000 Lumens Color Light Output brightness, its zoom and its wide lens shift range, allow it to deliver the clearest image where other projectors would struggle - even in high ambient light.

Once installed, the VPL-FH500L has excellent image capabilities and a long lifespan that delivers low Total Cost of Ownership. Sony's BrightEra technology improves and maintains color purity throughout the life of the system by protecting the LCD panels against harmful ultra violet light. Clever features such as dual auto-switching lamps, and synchronized lamp and filter replacement cycles, reduce maintenance costs and downtime.

Featuring the usual wide range of inputs, an external monitor connection for the presenter's convenience, and advanced projection capabilities such as side-by-side image projection and DICOM medical training, the VPL-FH500L is the projector of choice for venues that demand the highest quality in the most practical, flexible form.

This product comes with PrimeSupport - fast, hassle-free repairs and a helpline offering expert technical advice.


  • 3LCD XGA BrightEra Panel Technology - Sony's BrightEraPanel Technology gives more accurate colour rendition, higher brightness andlonger lifespan for a lower Total Cost of Ownership.
  • Ultra High Resolution - The VPL-FH500L's WUXGA(1920x1200) 16:10 format resolution delivers absolute best image quality.
  • Ultra High Brightness: 7,000 Lumens Color Light Output -With ultra high brightness of 7,000 Lumens Color Light Output, the VPL-FH500Lgives a very clear image in high ambient light, making it highly suitable forlarger venues.
  • Wide Lens Shift Range - Veritcal: +/-113%, Horizontal:+/- 63% (depending on optional lens)
  • Interchangeable Lenses: PX30, PX40, FX50, FH300 - TheVPL-FH500L allows you to choose the characteristics of the projector's opticsby selecting from a range compatible with previous models.
  • Dual Lamp Capacity, Auto-Switched, Giving Effective 6,000-8,000Hours (High/Std) Lamp Life - When a lamp reaches the end of its life,there's no downtime: the projector automatically switches to a second lamp,already in place, doubling the effective lamp life and halving the number ofmaintenance visits required, yielding lower Total Cost of Ownership.
  • Lamp/Filter Replacement Cycles Synchronized - Synchronized lamp and filter replacement effectively halves the number orvisits needed to maintain the projector in peak operating condition. (Filtersare provided with replacement lamp)
  • Side By Side Image Projection - Side by side twin imagegives you the ability to project from two inputs (RGB + any other Input) atthe same time, making the projector ideal for applications like videoconferencing and DICOM medical training.
  • DICOM GSDF Simulation - The VPL-F500L offers DICOM GSDFSimulation (HDMI with computer signals), which conforms to GSDF (GrayscaleStandard Display Function) of medical standards for DICOM (Digital Imaging andCommunication in Medicine).
  • Wide Range of Image Adjustments - This wide range ofimage adjustments allows the projector to be installed in almost any location.Where equipment is being upgraded, installers are more likely to be able touse existing mounts. In new installations, they are more likely to be able towork around existing obstructions.
  • User Panel Alignment - Pixel alignment shifts the entireimage or desired range (H: 16 X V: 10 pixels) for complete color correction.
  • Color Matching - The VPL-FH500L offers brightness andcolour matching adjustment to the original image for complete image accuracy.
  • Lower Operating Power Consumption than Previous Models -Lower operating power consumption helps reduce energy consumption and lowersrunning costs.


Display System

  • 3 LCD System - BrightEra Inorganic Panels

Display Element

  • Effective Display Size - 0.95" (24.1mm) x 3, BrightEra, Aspect: 16:10
  • Effective Pixels - 6,912,000 (1920 X 1200 X 3) Pixels

Projection Lens

  • Zoom: Powered / Manual (Depends on lens)
  • Focus: Powered / Manual (Depends on lens)
  • Lens Shift - Powered
  • Light Source - High Pressure Mercury Lamp 330W
  • Recommended Lamp Replacement - Approx. 6000H (Lamp Mode: High)Approx. 8000H (Lamp Mode: Standard)
  • Filter Cleaning Cycle - Same time as lamp replacement
  • Screen Size - 40 to 600 (1.02 to 15.24m) Depending on Lens
  • Luminous Flux (Brightness) - 7000lm (Lamp Mode: High) 5600lm (Lamp Mode:Standard)
  • Color Luminous Flux (Color Brightness) - 7000lm (Lamp Mode: High) 5600lm(Lamp Mode: Standard)
  • Contrast Ratio - 2500:1
  • Speaker - No

Displayable Scanning Frequency

  • Horizontal - 14 kHz to 93 kHz
  • Vertical - 47 Hz to 93 Hz

Display Resolution

  • Computer Signal Input - Maximum Display Resolution: 1920 X 1200 Dots(Resizing Display) Panel Display Resolution: 1920 X 1200 Dots
  • Video Signal Input - NSTC, PAL, SECAM, 480/60i, 567/50i, 480/60p, 576/50p,720/60p 720/50p, 1080/60i, 1080/50i, 1080/60p 1080/50p, 1080/24p, 1080/30p
  • Color System - NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60
  • V. Keystone Correction - Max. +/- 5 Degrees
  • OSD Language - 20 languages (English, Dutch, Italian, German, Spanish,Portuguese, Turkish, Polish, Russian, Swedish, Norwegian, Japanese, SimplifiedChinese Traditional Chinese, Korean, Thai, Vietnamese, Arabic, Persian)

Computer and Video Signal Input/Output

  • Operating Temperature (Operating Humidity) - 0 to 40° C/32 to 104° F (35to 85% (No Condensation))
  • Storage Temperature (Storage Humidity) - '-20 to 60° C/-4 to 140° F(10 to90%)
  • Power Requirements - AC 100 to 240V, 4.9 to 2.0A, 50 / 60Hz
  • Input A - RGB / Y PB PR Connector - 5BNC (Female)
  • Input B - RGB Input Connector - Mini D-Sub 15 pin (Female)
  • Input C - DVI-D Input Connector - DVI-D 24 pin (Single Link),supported HDCP
  • Input D - HDMI Input Connector - Digital RGB/Y PB PR
  • Input E - Optional adaptor slot - (For HD-SDI/SDI Input Adaptor“BKM-FW16”)
  • S Video In - S Video Input Connector - Mini DIN 4 pin
  • Video In - Video Input Connector - BNC
  • Output - Monitor Output Connector - Mini D-Sub 15 pin (Female)
  • Other Signal Input/Output -  RS-232C Connector: D-Sub 15 pin (Female)LAN Connector: RJ45, 10BASE-T/100BASE-TX Control S Input Connector: StereoMini Jack, Plug in power DC5V Control S Output Connector: Stereo Mini Jack

Power Consumption

  • AC100V: 490W
  • AC240V: 460W

Standby Mode Power Consumption

  • AC100V: 11W (Standby Mode: Standard) 0.1W (Standby Mode: Low)
  • AC240V: 10W (Standby Mode: Standard) 0.2W (Standby Mode: Low)

Heat Dissipation

  • AC100V: 1672 BTU
  • AC240V: 1569 BTU
  • Safety Regulations: WW Model
  • Body Color: White/Gray
  • Standard Outside Dimensions: Approx. W 530 X H 213 X D 545 mm - W 20-7/8"H 8-3/8" X D 21-15/32"
  • Weight: Approx. 20kg / 44lbs 1oz

Supplied Accessories

  • Remote Commander (1), with batteries : Size AA (R6) / Approx. 18g / x2
  • AC Power Cord (1)
  • Cable Clamps (2)
  • Lens Installation Screws (4)
  • Lens Hole Cover (1)
  • Quick Reference Manual (1)
  • Warranty Card (1) outside of box)
  • Security Label (1)
  • Operating Instructions: CD-ROM
