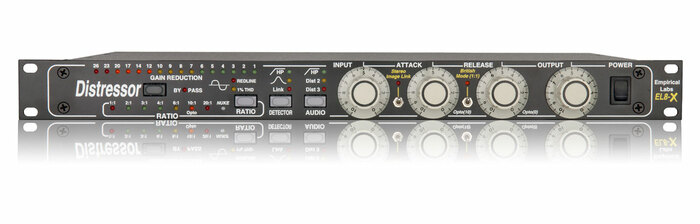

Empirical Labs, Inc EL8X-DISTRESSOR
Single channel Distressor with British Mod and Image Link Feature

OUR PART #:  EL8X-DISTRESSOR

The Distressor is an automatic gain (or volume) control device (AGC in engineering terms) designed for pro audio (music) applications.
Learn More
Our Price: $1,499.00
List Price: $1,700.00
You save 12%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Empirical Labs, Inc EL8X-DISTRESSOR
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Distressor is an automatic gain (or volume) control device (AGC in engineering terms) designed for pro audio (music) applications. Basically, it electronically controls the volume of just about any source in a very pleasing, and "musical" manner - adding fullness, intelligibility, and especially in the Distressor's case - excitement. This type of device is often called a "limiter" or "compressor" by audio industry people. Its most probable uses will be in recording studios, live sound situations, movie sound production, and radio broadcast production.

Unlike most analog compressor/limiters the Distressor is a digitally controlled audio device and actually incorporates several products into one by utilizing digital controls to switch totally different circuits in and out. Years of beta testing and redesign went into the Distressor as will be the case with all Empirical Labs products.

Besides offering a wide range of control and unique features, the Distressor offers a warm, vintage sound by using a custom designed gain control circuit. This "warmth" or vintage sound has become an important issue in the last 15 years, as the super clear and linear digital technology does very little (or nothing) to soften "harsh" sounds nor emphasize the bass frequencies in music sources. Older analog tape, vinyl records and tube equipment on the other hand, could not be prevented from coloring the sound, often to the frustration of recording engineers. However, many people have now realized that this coloring can be extremely pleasant and "musical".The current digital technology is often referred to as "cold" and "brittle" among other terms, although we prefer the term "unforgiving" to describe the negative side of the "linearity". The Distressor offers several modes that color the signal, even without compression (or gain control). These extended modes were designed to allow emulation of some very old and some very expensive vintage gain control units (compressors & limiters) and deliver a classic "knee" sound all its own.

Stereo Image Link feature:

The original Distressor stereo link implementation used a summing and phase detection method which allowed stereo image shifting. "Image shifting" occurs when the interchannel balance (the relative volume between Left and Right channels) changes during compression. Although known for its phase correction, and its "thickening" on open room mics and other stereo sources, this approach has sometimes been a problem on stereo program material where the producer/engineers want to maintain absolute left/right balance at all times.

With the new "Stereo Image Link" option, the Distressor user now has three link options - the original "phase" link, the new Image Link and the combination of the two, phase and image linking. This has never before been offered on any compressors or limiters. There can be very slight differences in the metering between the two units. Due to the high resolution of the Distressor's metering, 1/10th dB can make an LED on one unit go on or off earlier than the other unit's. Also, don't readjust knob alignment - the output pots especially. They are often offset around "0" to allow for "dead spots" at the lower extremes.

British Mode Feature:

The original concept of the "British Mode" came from an unusual setting on the classic UREI LN1176 limiter. The unit was designed to have only four ratios, each ratio being engaged by selecting one of four buttons. However, as early as 1980 (or before), renegade recording engineers, always on the lookout for something a little more "over the top", found that you could make all four buttons stay "in" if you pressed them just right. What resulted was a very, very aggressive sound that had some elements of the units 20:1 ratio, but with an unusual knee and new envelope shape. Somewhere along the line, someone called it a "British Mode" and the name has stuck. It is also called "all buttons in" and some other intuitive names.

The Distressor has the advantage of being able to apply this "aggressive" nature not only to the new British ratio (1:1) but also to all the ratios since a separate switch is installed, which can be enabled with any ratio.  One should keep in mind however, that an attack below 3 or 4 is required to maintain the LN1176 character.  If you go above an attack of 3 you will also incur a rise in some grunge (distortion) and see the THD indicator lites come on a lot more. The Distressor will no longer behave smoothly, nor like an 1176.

Specifications

  • Freq. response is 2 Hz to 160 kHz in clean audio mode (+0, -3 dB). Response is shaped in distortion modes (Dist 2, Dist 3).
  • Dynamic range 110 dB from max. output to min. output in 1:1 mode. Greater than 100 dB signal to noise in distort 3 mode.
  • Distortion ranges between .02% and 20% depending on distortion mode and release times set on front panel.
  • DC coupled output - High quality input caps.
  • Input impedance is 20K Ohms, Output impedance is < 75 ohms
  • Time constants - Attack range 50uS - 50mS. Release range .05 sec to 3.5 seconds, normal modes and up to 20 seconds in 10:1 opto mode. Time constants are dependant on ratio.
  • Metal Chassis - single height 1.75" high, 10" deep, 19" wide.
  • Shipping info - 12.1 lbs mono. Mono box dimensions 22.5" x 18.5" x 3 1/4".
