Blackmagic Design VHUBUV/288CH
Universal Videohub 288 Card-Based Router Frame for 288x288 3G-SDI, 288 Control and Redundancy

OUR PART #:  VHUBUV-288CH

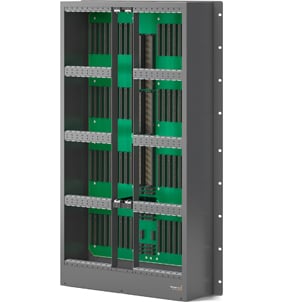

Blackmagic Design's Universal Videohub 288 rack frame lets you add up to 72 BNC SDI or optical fiber SDI interfaces plus dual 288 x 288 crosspoint cards and up to two power cards.
Learn More

Call for price! Not available online.
List Price: $9,995.00

Similar Products

Blackmagic Design's Universal Videohub 288 rack frame lets you add up to 72 BNC SDI or optical fiber SDI interfaces plus dual 288 x 288 crosspoint cards and up to two power cards.  Add a single crosspointfor affordability, or add dual crosspoint and power cards for full redundancy. Includes removable fan tray and fans.

The Universal Videohub 288 is the ultimate 3G/HD/SD and deck control routing switcher. With 288 x 288 crosspoint cards, the frame can be easily upgraded using hot swappable regular BNC SDI or optical fiber interface modules that also include full deck control. If you need redundancy then simply add a second crosspoint card for true 24/7 reliability!

All inputs have auto standards detection and all outputs are re-clocked. Universal Videohub 288 features an 18 rack unit frame that is less than 6 inches deep. You also get ethernet and serial connectivity, third party control and redundant power supplies. Universal Videohub 288 lets you start small for an affordable cost and then expand its size and even add full redundancy as your needs grow!

Specifications:

  • SDI Video Input: Up to 288x SDI/HD-SDI, 3Gb/s SDI and ASI. Can be BNC SDI or optical fiber SDI.
  • SDI Video Output: Up to 288x SDI/HD-SDI, 3Gb/s SDI and ASI with SDI re-clocking. Can be BNC SDI or optical fiber SDI.
  • Multi Rate Support: Auto detection of SD, HD or 3 Gb/s SDI. Simultaneous routing of 2K, HD, SD video and DVB-ASI.
  • Device Control: Up to 288 bidirectional Sony™ compatible RS-422 deck control ports via breakout cable.
  • Router Control: Use either RJ45 Ethernet or USB 2.0 high speed interface shared over IP network.
  • RS-422 Router Control: 1x input for controlling router crosspoint switching.
  • Updates: USB 2.0 high speed (480Mb/s) interface.
  • Re-clocking: On all SDI outputs.
  • Reference Input: Blackburst and TriSync for SD, HD and 2K.
  • SD Format Support: 625/25 PAL and 525/29.97 NTSC.
  • HD Format Support: 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 1080p50, 1080p59.94, 1080p60, 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60.
  • 2K Format Support: 2048 x 1556/23.98/24/25.
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
  • SDI Video Sampling: 4:2:2 and 4:4:4.
  • SDI Video Rates: SDI video connections are switchable between standard definition, high definition and 2K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD and 2K SDI.
  • SDI Color Precision: 4:2:2 and 4:4:4 10 bit.
  • SDI Color Space: YUV or RGB.
  • SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
  • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
  • SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, 3 Gb/sSDI and DVB-ASI on each input so that each input can be running a differenttelevision stand
