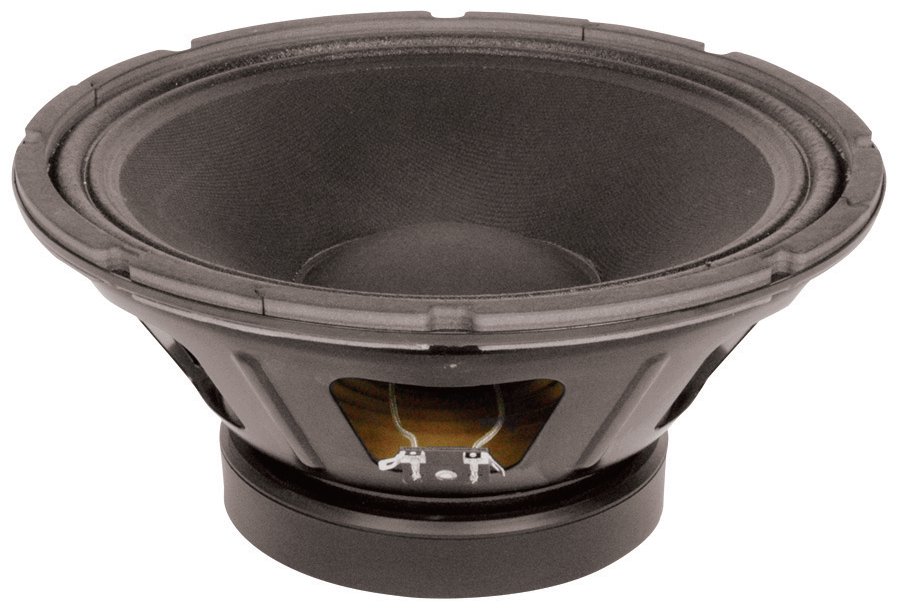

OUR PART #: DELTA-12LFC MFR #: DELTA-12LFC
Low frequency woofer for pro audio mid-bass or floor monitor applications in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures. ...Read more
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service
Low frequency woofer for pro audio mid-bass or floor monitor applications in a sealed enclosure. Also suitable as a woofer in vented, bass guitar or PA enclosures.
Specification
Nominal Basket Diameter 12", 304.8mm
Nominal Impedance* 4 ohms
Power Rating**
Watts 500W
Music Program 1000W
Resonance 52Hz
Usable Frequency Range 45Hz - 2.3kHz
Sensitivity*** 93.1dB
Magnet Weight 56 oz.
Gap Height 0.37", 9.53mm
Voice Coil Diameter 2.5", 63.5mm
Mounting Information
Recommended Enclosure Volume
Sealed 21-74 liters / 0.7-2.6 cu.ft.
Vented 28-110 liters / 1-3.9 cu.ft.
Driver Volume Displaced 137.3 cu.in. / 2.25 liters
Overall Diameter 12.03", 305.5mm
Baffle Hole Diameter 11.07", 281.2mm
Front Sealing Gasket Fitted as standard
Rear Sealing Gasket Fitted as standard
Mounting Holes Diameter 0.25", 6.4mm
Mounting Holes B.C.D. 11.59", 294.4mm
Depth 5.88", 149.35mm
Net Weight 11.8 lbs, 5.4 kg
