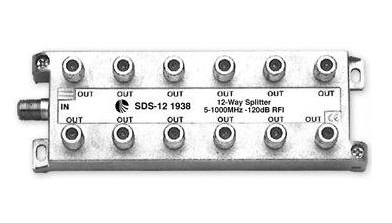

Blonder-Tongue SDS-12
Splitter, 12-way, 5-1000 MHz

OUR PART #:  SDS-12

This unit is an indoor 12-way splitter...
Learn More
Our Price: $11.35
List Price: $11.60
Blonder-Tongue SDS-12
Qty:
Similar Products

This unit is an indoor 12-way splitter, operating from 5-1000MHz

Features:

  • Zinc Die-cast housing with corrosion protection
  • Solder back
  • -120dB RFI

Specifications:

Loss (dB)

  • 5 - 40 MHz: 11
  • 40 - 400 MHz: 11
  • 400 - 500 MHz: 11.5
  • 500 - 600 MHz: 12
  • 600 - 1000 MHz: 13

Isolation (dB)

  • 5 - 40 MHz: 28
  • 40 - 400 MHz: 32
  • 400 - 500 MHz: 30
  • 500 - 600 MHz: 28
  • 600 - 1000 MHz: 25

Return Loss Input (dB)

  • 5 - 40 MHz: 18
  • 40 - 400 MHz: 18
  • 400 - 500 MHz: 18
  • 500 - 600 MHz: 18
  • 600 - 1000 MHz: 18

Return Loss Output (dB)

  • 5 - 40 MHz: 18
  • 40 - 400 MHz: 20
  • 400 - 500 MHz: 20
  • 500 - 600 MHz: 20
  • 600 - 1000 MHz: 18
