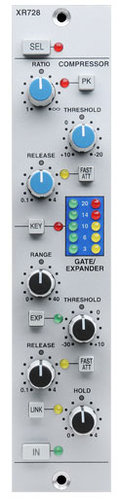

Solid State Logic XRACK-DYNAMICS-STEREO
Stereo Dynamics Module f/X-Rack

OUR PART #  XRACK-STEREO-DYNAMIC

Our Price: $1,399.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The X-Rack Stereo Dynamics module is a stereo version of the powerful SSL channel dynamics. Featuring independent Compressor/Limiter and Expander/Gate circuits, the Stereo Dynamics module provides the familiar SSL Superanalog level control tools for both Recording and Mixing applications. The Compressor section can switch between a gentle Over easy RMS compression and a more aggressive Peak sensing or Hard Knee mode providing a wide range of levelling control. The secondary circuit can function as either a Noise Gate or an Expander further enhancing the creative sound sculpting possibilities. The feature set is completed by an External Key Input (mono) and the ability for multiple adjacent units to be linked.

FEATURES

  • +4dBu Operating Level
  • Balanced Stereo Line 1/4" Jack Input and Output
  • RMS or Peak Sense Stereo Compressor/Limiter
  • Dedicated Gain Reduction Metering
  • Independently switched Gate/Expander
  • External Key Input 1/4" Jack
  • Link function for multiple modules



SPECIFICATIONS

Physical

  • Depth: 7.9"
  • Height: 10.9"
  • Width: 1.4"
  • Weight: 9.5oz

Compressor/Limiter

  • Ratio (slope): Variable from 1 to infinity (limit)
  • Threshold: Variable from +10dB to -30dB
  • Attack Time: Normally auto sensing, switchable to 1ms
  • Release Time: Variable from 0.1 to 4 seconds

Expander/Gate

  • Range: Variable from 0 to 40dB
  • Threshold: Variable from -30dB to +10dB
  • Attack Time: Normally auto-sensing, switchable to 150µs
  • Hold Time: Variable from 0 to 4 seconds
  • Release Time: Variable from 0.1 to 4 seconds

Performance

  • THD + N (+10dBu applied): <0.01% at 1kHz
  • THD + N (Fast Attack Mode): <0.3% at 1 kHz
  • THD + N (Slow Attack Mode): <0.05% at 1kHz
  • Output Headroom: >+26dBu at onset of clipping
  • Frequency Response: -3dB at 150kHz // +/-2dB from 20Hz to 20kHz







Click to download

Solid State Logic XRACK-DYNAMICS-STEREO
Stereo Dynamics Module f/X-Rack

OUR PART #  XRACK-STEREO-DYNAMIC

Product Information:

The X-Rack Stereo Dynamics module is a stereo version of the powerful SSL channel dynamics. Featuring independent Compressor/Limiter and Expander/Gate circuits, the Stereo Dynamics module provides the familiar SSL Superanalog level control tools for both Recording and Mixing applications. The Compressor section can switch between a gentle Over easy RMS compression and a more aggressive Peak sensing or Hard Knee mode providing a wide range of levelling control. The secondary circuit can function as either a Noise Gate or an Expander further enhancing the creative sound sculpting possibilities. The feature set is completed by an External Key Input (mono) and the ability for multiple adjacent units to be linked.

FEATURES

  • +4dBu Operating Level
  • Balanced Stereo Line 1/4" Jack Input and Output
  • RMS or Peak Sense Stereo Compressor/Limiter
  • Dedicated Gain Reduction Metering
  • Independently switched Gate/Expander
  • External Key Input 1/4" Jack
  • Link function for multiple modules



SPECIFICATIONS

Physical

  • Depth: 7.9"
  • Height: 10.9"
  • Width: 1.4"
  • Weight: 9.5oz

Compressor/Limiter

  • Ratio (slope): Variable from 1 to infinity (limit)
  • Threshold: Variable from +10dB to -30dB
  • Attack Time: Normally auto sensing, switchable to 1ms
  • Release Time: Variable from 0.1 to 4 seconds

Expander/Gate

  • Range: Variable from 0 to 40dB
  • Threshold: Variable from -30dB to +10dB
  • Attack Time: Normally auto-sensing, switchable to 150µs
  • Hold Time: Variable from 0 to 4 seconds
  • Release Time: Variable from 0.1 to 4 seconds

Performance

  • THD + N (+10dBu applied): <0.01% at 1kHz
  • THD + N (Fast Attack Mode): <0.3% at 1 kHz
  • THD + N (Slow Attack Mode): <0.05% at 1kHz
  • Output Headroom: >+26dBu at onset of clipping
  • Frequency Response: -3dB at 150kHz // +/-2dB from 20Hz to 20kHz







Click to download
