Audio-Technica AT2022
Microphone, X/Y Stereo Condnser

OUR PART #:  AT2022

The AT2022 is a condenser microphone designed for stereo recording.
Learn More
Our Price: $249.00
Write the first review.
Audio-Technica AT2022
Qty:
In Stock
Related Products

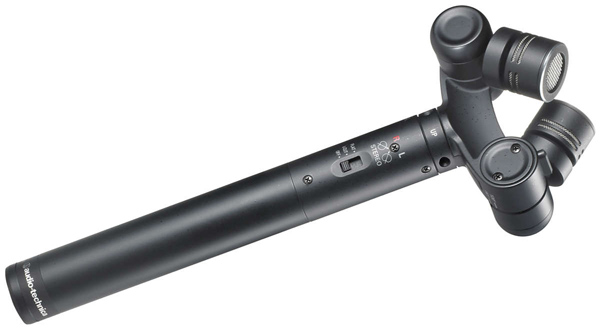

The AT2022 is a condenser microphone designed for stereo recording. Two unidirectional condenser capsules in an X/Y configuration pivot to allow for narrow (90°) or wide (120°) stereo operation. The capsules also fold flat for storage and transportation. Designed for general stereo recording and field sound capture, the AT2022 provides the spatial impact and realism of a live sound field. The microphone comes equipped with a stand clamp, AA battery, fuzzy windscreen and .5 m cable that terminates in a 3.5 mm stereo plug.

Audio-Technica 2022 Features:

  • X/Y stereo microphone with unique pivoting electret condenser capsules for ultimate flexibility
  • Provides the spatial impact and realism of a live sound field
  • Battery operation allows use with most recording devices
  • Switchable low-frequency roll-off minimizes pickup of unwanted low-frequency noise
  • User-selectable 90° or 120° stereo operation for narrow or wide pickup patterns
  • Ideal for general stereo recording and field sound capture
  • Excellent channel separation
  • Included fuzzy windscreen offers excellent wind protection

Audio-Technica 2022 Specifications:

  • Elements: Fixed-charge back plate, permanently polarized condenser
  • Polar Pattern: X/Y Stereo
  • Frequency Response: 20–20,000 Hz
  • Low Frequency Roll-Off: 150 Hz, 6 dB/octave
  • Open Circuit Sensitivity: -41 dB (8.9 mV) re 1V at 1 Pa
  • Channel Balance: <2.5 dB
  • Impedance: 200 ohms
  • Maximum Input Sound Level: 122 dB SPL, 1 kHz at 1% T.H.D.
  • Dynamic Range (typical): 103 dB, 1 kHz at Max SPL
  • Signal-To-Noise Ratio: 75 dB, 1 kHz at 1 Pa
  • Battery Type: 1.5V AA/UM3
  • Warning: The AT2022 is designed for battery operation only. Do not attempt to use when phantom power is present. Possible damage to the microphone may result.
  • Battery Current/Life: 1.2 mA / 500 hours typical (alkaline)
  • Switch: Off, on/flat, on/roll-off
  • Weight: 270 g (9.5 oz)
  • Dimensions:
    • 192.0 mm (7.56") long,
    • 65.0 mm (2.56") maximum head diameter,
    • 21.0 mm (0.83") body diameter
  • Output Connector: Integral 3-pin XLRM-type
  • Cable: 0.5 m (1.6') long, 3 conductor, shielded, vinyl-jacketed stereo cable with 3-pin XLRF-type connector at microphone end and 3.5 mm (1/8") TRS connector at output end
  • Accessories Furnished:
    • AT8405a stand clamp for 5/8"-27 threaded stands
    • Fuzzy windscreen
    • Battery
    • Soft protective pouch
