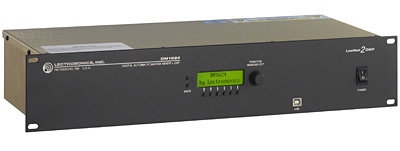

Lectrosonics DM1624F
Digital Automatic Matrix Mixer

OUR PART #:  DM1624F

The DM1624F is a powerful digital audio processing, mixing and routing system.
Learn More
Our Price: $4,569.67
List Price: $5,610.00
You save 19%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Lectrosonics DM1624F
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DM1624F is a powerful digital audio processing, mixing and routing system. The primary applications are sound reinforcement and conferencing in boardrooms, courtrooms, worship centers, distance learning systems, hotels and other applications with multiple microphones and loudspeakers. The design represents a milestone in DSP technology in its basic architecture and in its processing speed and efficiency.

The basic architecture consists of 16 mic/line inputs and 24 outputs with a full DSP-based crosspoint matrix that allows every input to be routed to any or all outputs. Following the A-D conversion at each input, the signal passes through multiple DSP filters, ADFE (automatic digital feedback eliminator), a compressor and a digital delay. In the matrix, gain is adjustable from -69 to +20 dB in 1 dB steps at each crosspoint. Each of the 24 outputs provides a digital delay, multiple DSP filters and a compressor/limiter.
ts slim, elegant design that feels right at home in one’s hand, the new HH transmitter accepts standard thread-on capsules from a number of manufacturers. This gives users the freedom to select the microphone capsule that is best suited for their particular application. Equally notable, the new HH transmitter offers 44 dB of input gain range, making this transmitter ideal for a variety of capsule sensitivities and source volume differences. Further, two capsules are available from Lectrosonics: the HHC cardioid condenser and the HHS supercardioid condenser.

DM DM1624F Features:

  • 16 mic/line inputs, 24 line outputs (8 outputs are mic/line switchable)
  • 16 x 24 digital matrix mixing; gain is adjustable from -69 to +20 dB
  • Proportional gain auto mixing algorithm with AutoSkew™ - US Patent 5,414,776 and 5,402,500
  • Auto mixing operates at the output of the matrix -each input channel can participate differently in each output mix
  • Each output has its own NOM mixing bus
  • 6 filter stages plus compressor, ADFE and delay on each input
  • 9 filter stages plus compressor, limiter and delay on each output
  • 128 macros available for storing up to 64 commands per macro
  • USB and RS-232 interfaces for setup and control
  • Digital I/O ports for "daisy chaining" and to connect other LecNet 2 devices
  • AMX© and CRESTRON™ compatible
  • Simultaneous LecNet2 and Third-Party control
  • Continuous fan cooling
