TecNec HD-488
ESE Time Code Reader

OUR PART #:  HD-488

The HD-488 is a Time Code Reader, Generator and inserter for HD (High Definition) Serial Digital Interface (SDI) video.
Learn More
Our Price: $2,995.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

TecNec HD-488
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The HD-488 is a Time Code Reader, Generator and inserter for HD (High Definition) Serial Digital Interface (SDI) video. Linear Time Code (LTC) and RP-188 Time Code are both read and generated by the HD-488. The unit also accepts a multitude of HD formats. The inserter mode provides the ability to superimpose time and/or user bits onto video with alphanumeric characters. As many as 30 characters of text may also be superimposed onto the video. Flexibility is also provided to the user, allowing for selection of the information to be displayed (time, time and user bits or text) on up to three different windows. The three windows are independent of each other and may be blanked.

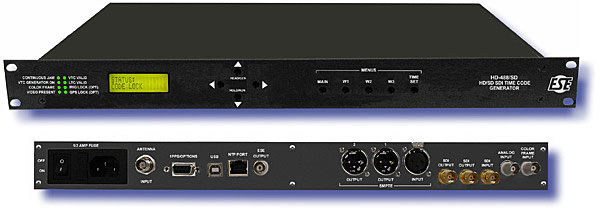

The video input and output are accessible via rear mounted BNC connectors. The unit is housed in a 1RU rack mount enclosure which is black anodized.

A 16x2 character LCD shows the current time and status of the HD-488. The front panel controls allow access to all configuration settings as displayed on the 16x2 character LCD. The same controls are available on the PC software which is accessible via the rear mounted USB port.

FEATURES

  • Generates/Inserts Time Code
  • USB Setup Interface
  • User Friendly Control
  • Universal Power Supply (90-264VAC)
  • Accepts Multiple HD Formats
  • Time Zone Offset
  • LCD Setup/Status Display
  • Numerous Options Available
  • Dual LTC Output

SPECIFICATIONS

  • Power: 90 . 264 VAC, 47 . 63 Hz, 15 Watts max
  • Mechanical: Rackmount Enclosure 1¬ĺ" H x 19" W x10" D
  • Time & Setup/Status Display: 16x2 character LCD
  • Time Code Input: SMPTE (100 mVpp-10Vpp; 10k Ohm input impedance)
  • HD SDI Input/Output: 1080i/60, 1080i/59.94, 1080i/50, 1080p/30sF, 1080p/29.97sF, 1080p/25sF, 1080p/24sF, 1080p/23.98sF, 720p/59.94
  • Analog Input: 1Vpp, terminated
  • Color Frame Input: Vertical interval negative TTL/CMOS pulse.
