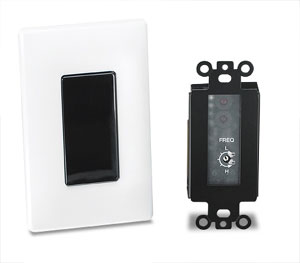

Xantech WL85
LCD/CFL J Box Receiver


Call for price! Not available online.

The WL85 is designed to reject interference from Plasma, LCD, LED displays and Compact Flourescent Lamps (CFL) from entering the IR signal line. This IR receiver mounts easily into a single gang, electrical j-box, is supplied with mounting screws, and comes with a decorator-style insert, allowing the installer to use a decorator-style wall cover plate. This provides an integrated look for control of A/V equipment behind closed doors or any IR Repeater System that is in close proximity to light sources described above.


  • J-Box Mounting with Decorator-style insert, available in black or white
  • 4-screw terminal block for interface to Xantech Connecting Blocks
  • Works in normal 3-wire mode
  • Improved Compact Flourescent Light Rejection
  • May be used in direct sunlight
  • RF Grid included for EMI reduction
  • Talk Back LED for IR reception and full system operation indication
  • Status LED for system On/Off indication (requires 12VDC Source @ 10mA)
  • 7 units may be powered by one 781ERGPS power supply (regulated 12VDC 200mA supply)


  • Infrared modulation frequency bandwidth: 30-60kHz
  • Reception range: up to 80', depending on remote control output strength and ambient conditions.
  • Reception angle: 55 degrees off axis at 50% range reduction
  • Cable requirements: 3-conductor. Use 24-gauge up to 200' (61M), 22 gauges up to 600' (180M), 20-gauge up to 2000' (600M), 18-gauge up to 5000' (1.5KM) -- unshielded OK.
  • Maximum transmission length: One mile using 18-gauge wire
  • Maximum current output: 100mA (pulse)
  • Dimensions: 1-3/4"W x 4-1/8"H x 1-1/8" D
  • Power requirements: 12VDC @ 20mA
