Martin Professional GLACIATOR-X-STREAM
Jem Glaciator X-Stream Heavy Fog Machine (Martin Part #: 92210501)

OUR PART #:  GLACIATOR-X-STREAM

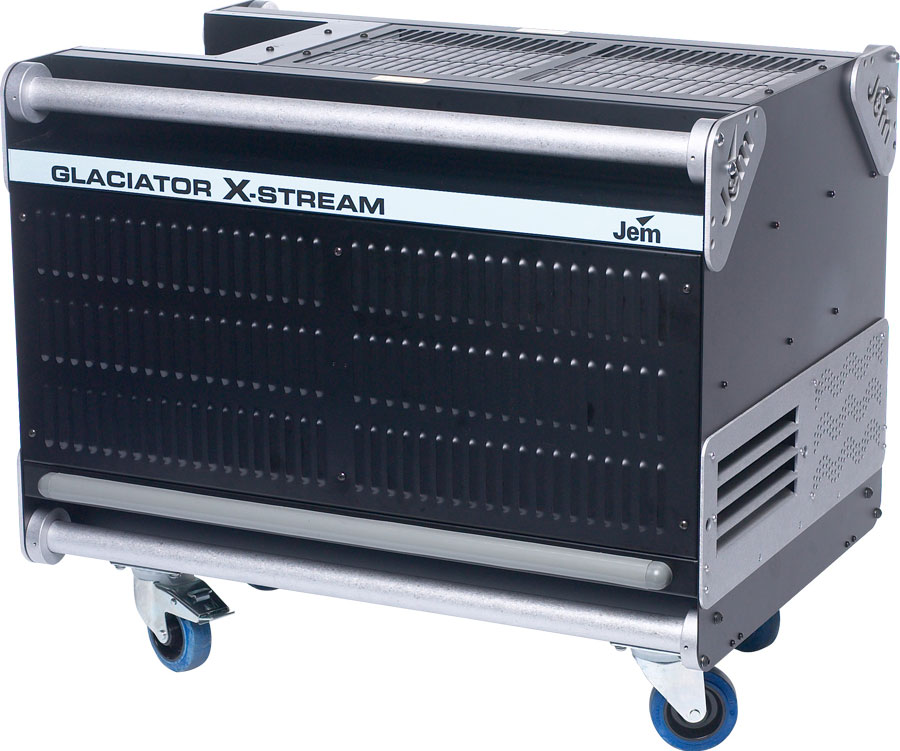

Martin Professional's Glaciator X-Stream creates a total, ground fog effect from a self-contained unit.
Learn More

Call for price! Not available online.
List Price: $12,810.00

Similar Products

Martin Professional's Glaciator X-Stream creates a total, ground fog effect from a self-contained unit.  The Glaciator X-Stream utilizes the simple but effective Jem heavy fog fluids and a closed loop refrigeration system for a heavy fog solution.

The Glaciator X-Stream houses a powerful compressor, allowing colossal fog output levels.  And because of its advanced, electronically controlled expansion valve, it has a rapid freeze down time and a fast recovery when fired.  This means the Glaciator X-Stream runs continuously with a cool ease.

Its chassis design; with two high velocity fans and smart-flow ventilation, also keeps the Glaciator X-Stream ticking in environments of high ambient temperatures.  And keeping an eye on internal components is done with an unparalleled simplicity using the Glaciator X-Stream's Internal Diagnostic Assistance.

Featuring a Power Save System when passive, The Glaciator X-Stream is conscientiously efficient with energy and sound, and its cooling fans have a low noise operation when idle, benefiting theatrical and Studio applications.

The Glaciator X-Stream also has the option of an external fluid supply; allowing voluminous levels of heavy fog fluid to be stored up to 100 meters away from the unit and at a depression of up to 6 meters.

Where silence is golden and space is rare, the Glaciator X-Stream's remote ducting system allows you to place the unit up to 10 meters away from its application area.  A great solution, the remote access system does not in any way compromise the Glaciator's X-Stream fog output density.

Martin Professional GLACIATOR-X-STREAM Fog Machine Features:

  • Density control: low, medium or high
  • Continuous output
  • 80 m2/min fog output
  • 3500 W heat exchanger
  • 15 min heat-up time
  • 5 liter fluid capacity
  • Different fluid options for different applications
  • Internal or external fluid supply
  • Low fluid sensing
  • Self contained unit: no C02 or dry ice
  • Onboard DMX
  • On-board control panel
  • Optional ducting system

Martin Professional GLACIATOR-X-STREAM Fog Machine Specifications:

  • Dimensions (LxWxH): 34.1" x 25.1" x 28.5" (866 x 638 x725 mm)
  • Dry weight: 242.5 lbs. (110 kg)
  • Coverage volume: 80 m2 per minute
  • Operating time: Continuous, automatic leveladjustment
  • Warm-up time (approx.): 15 minutes
  • Control options: Onboard control panel, DMX
  • Compatible remote controls: For limited control
  • DMX channels: 2 (output and compressor)
  • Protocol: USITT DMX512/1990
  • Housing: Steel & aluminum
  • Heat exchanger: 3500 W, direct thermal protection
  • Fluid pump: Oscillating piston, high pressure X2
  • Onboard fluid capacity: Internal 5 l reservoir
  • External fluid supply: For larger volume remote fluidsupply
  • Fluid consumption at peak output: 120 ml per minute
  • Orientation: Floor mount only (On wheels)
  • Remote control: 3-pin locking XLR
  • DMX data: 3-pin locking XLR
  • Power cable entry: IEC-EN60309-2 Socket (Cee Type)
  • AC power (US models): 208 V, 60 Hz
  • Main Fuse (208 V power): Onboard 32 A Breaker
  • Typical Power and Current:
    • 220 V, 50 Hz: 4483 W, 20.3 A
    • 230 V, 50Hz: 4900 W, 21.3 A
    • 240 V, 50 Hz: 5335 W, 22.23 A
    • 208 V, 60 Hz: 4200 W, 22.5 A
    • Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
  • Maximum ambient temperature (Ta max.): 40° C (104° F)
  • Exterior surface temperature, steady state: 50° C(122° F)
  • Max. nozzle temperature: 200° C (392° F)
  • Approvals:
    • EU safety: EN 50 081-1, EN 50 082-1
    • EU safety: EN 60 335-1 (1995)
  • Included Items: User manual, 'C' form female socket for use with own powercable, Container 5 l
