Xantech ML95K
IR Receiver Kit

OUR PART #  ML95K

Call for price! Not available online.

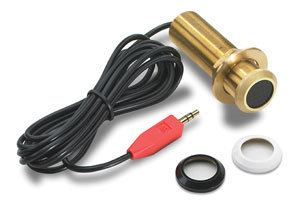

The Micro Link IR Receiver is a small peep-hole style infrared repeater assembly. The Micro Link IR Receiver is equipped with a 7' cable and a 1/8" stereo mini plug, which is plugged directly into the "IR RCVR" jack on the connecting black, such as models 789-44, CB60 and 791-44. It is primarily intended for use in installations where the connecting block is within reach of it 7' cable - as when installing the Mirco Link IR Receiver in a cabinet where the controlled equipment is behind closed doors. For use with all types of cable boxes, satellite boxes, remote controls and TVs, works with LED, LCD & Plasma TVs as well as CFL lighting. White, brass and black bezels included to match decor.

FEATURES

  • Small size; mounts in 1/2" diameter hole. 2" deep.
  • Quick-Connect 1/8" stereo mini plug on 7' cable for direct plug-in to Xantech Connecting Blocks.
  • Works in normal 3-wire mode (12VDC, IR, GND)
  • Green Talkback LED for System Verification
  • Includes 789-44 Connecting Block, Power supply and four 283D emitters for easy system installation

SPECIFICATIONS

  • Infrared modulation frequency bandwidth: 25-60kHz
  • IR reception range: Up to 120', depending on remote control output strength and ambient conditions
  • Reception ange: 55 degrees off axis for 50% range reduction
  • Cable requirements: 3-conductor. Use 24 gauge up to 200', 22 gauge up to 600' 20 gauge up to 2,000', 18 gauge up to 5,000' - unshielded OK.
  • Max. transmission length: 1 mile using 18 gauge wire.
  • Maximum current output: 100mA
  • Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
  • Dimensions: 0.7" diameter x 2.2" deep
  • Power requirements: +12VDC, 20mA



Xantech ML95K
IR Receiver Kit

OUR PART #  ML95K

Product Information:

The Micro Link IR Receiver is a small peep-hole style infrared repeater assembly. The Micro Link IR Receiver is equipped with a 7' cable and a 1/8" stereo mini plug, which is plugged directly into the "IR RCVR" jack on the connecting black, such as models 789-44, CB60 and 791-44. It is primarily intended for use in installations where the connecting block is within reach of it 7' cable - as when installing the Mirco Link IR Receiver in a cabinet where the controlled equipment is behind closed doors. For use with all types of cable boxes, satellite boxes, remote controls and TVs, works with LED, LCD & Plasma TVs as well as CFL lighting. White, brass and black bezels included to match decor.

FEATURES

  • Small size; mounts in 1/2" diameter hole. 2" deep.
  • Quick-Connect 1/8" stereo mini plug on 7' cable for direct plug-in to Xantech Connecting Blocks.
  • Works in normal 3-wire mode (12VDC, IR, GND)
  • Green Talkback LED for System Verification
  • Includes 789-44 Connecting Block, Power supply and four 283D emitters for easy system installation

SPECIFICATIONS

  • Infrared modulation frequency bandwidth: 25-60kHz
  • IR reception range: Up to 120', depending on remote control output strength and ambient conditions
  • Reception ange: 55 degrees off axis for 50% range reduction
  • Cable requirements: 3-conductor. Use 24 gauge up to 200', 22 gauge up to 600' 20 gauge up to 2,000', 18 gauge up to 5,000' - unshielded OK.
  • Max. transmission length: 1 mile using 18 gauge wire.
  • Maximum current output: 100mA
  • Drives IR emitters through Xantech Connecting Blocks, Controllers, etc.
  • Dimensions: 0.7" diameter x 2.2" deep
  • Power requirements: +12VDC, 20mA
