Channel Vision CVT-40BID
Amp, 38DB, Bidirectional

OUR PART #:  CVT-40BID

Our Price: $202.31
List Price: $384.00
You save 47%!

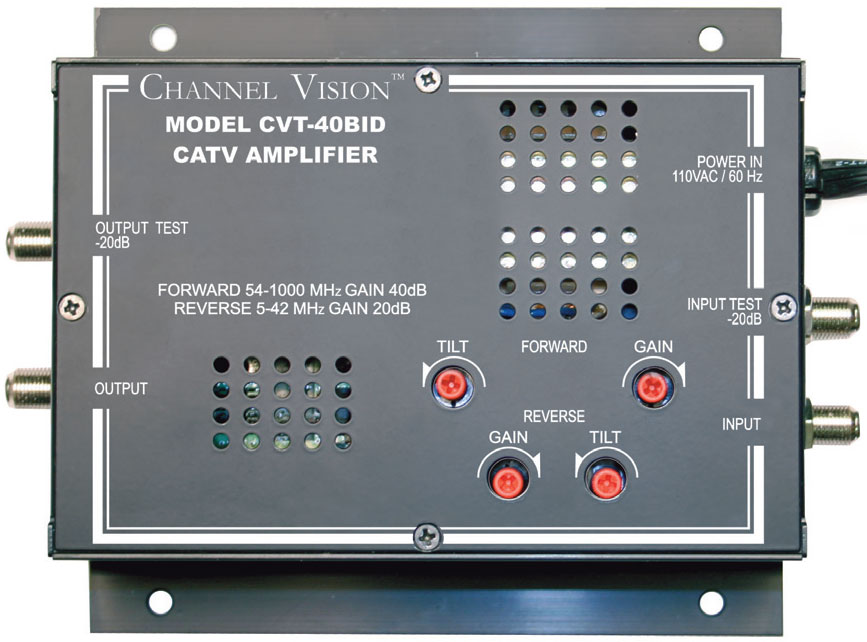

Channel Vision CVT-40BID
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Channel Vision's 40dBmV amplifier is the perfect cable or antenna amplifier for large multi-dwelling units that require precise RF amplification with gain and slope adjustments for a professional installation.

FEATURES

  • Suitable for use with CATV or Antenna Systems from 5-1000MHz frequency TV band
  • Provides and amplified 5-42MHz bi-directional reverse path for interactive TV, addressable cable box converters and cable modems
  • Includes variable gain to reduce the possibility of overdriving the system
  • Variable tilt compensation allows large systems to be properly balanced and a flat signal across all frequencies

SPECIFICATIONS

  • Output Frequency Range: 54-1000MHz
  • Output Level: 50dBmV (2ch, spurs -60dBC)
  • Gain: 40dB
  • Gain Control: 0-20dB
  • Tilt Control: 0-16dB
  • Noise Figure: <2dB (max gain, min tilt)
  • Return Loss: 8dB
  • Input/Output Impedance: 75 ohm
  • Input and Output Test Points: -20dB
  • Connectors: F type female
  • Power Supply: 110VAC internal
  • Power Consumption: 20W
  • Operating Temperature: 14 degrees F to 140 degrees F
  • Reverse Path: 5-42MHz
  • GainL 20dB
