OUR PART #: LPTR2-1019 MFR #: LPTR2-1019
Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.
Email customer service

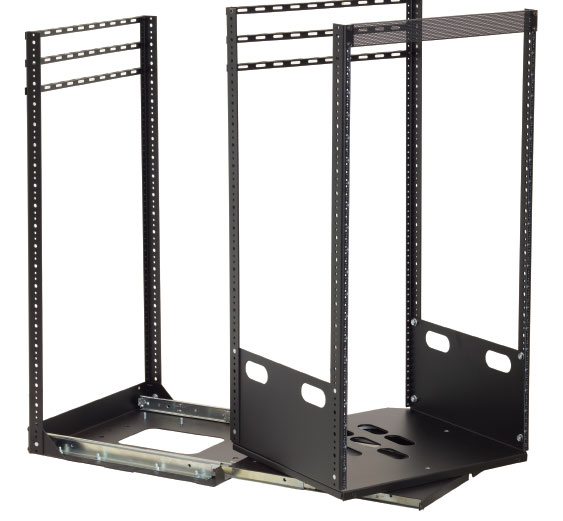

The Pull & Turn Rack was designed for built-in wall and millwork applications and features a turntable on two heavy-duty slides for smooth pullout access to rackmounted equipment. The bottom base installs with screws and can be mounted flush or recessed up to 2" in a boxed wall or cabinetry to allow for equipment protrusions. The removable rack base, with or without mounted equipment, docks and secures to the bottom base using two screws on the front and rear frame (no wing nuts under the rack). When equipment is in place and wired, the assembly is secured in a fixed position with two screws through a perforated front security panel. The security panel can be removed to facilitate wiring and servicing, allowing the rack to be pulled out from the wall or millwork. A push button lock and release, accessible in the center front of the bottom base, allows the rack to rotate 60º and 90º on the turntable. Note: the rack must be fully forward to rotate with adequate clearance. If it is recessed up to 2" it will not rotate the full 900.
The LPTR is engineered and packaged in two cartons for efficient onsite installation. The bottom base (with two slides and integral turntable) along with two rear corner post rails and three cable lacing bars can be sent ahead to the job site and installed in a boxed wall opening or cabinet. The second carton contains the rack base, front and rear posts, side stiffeners, front vent panel and three lacing bars to assemble the rack for pre-loading and testing of equipment in the shop — a real benefit for boardroom and training facility installations.
