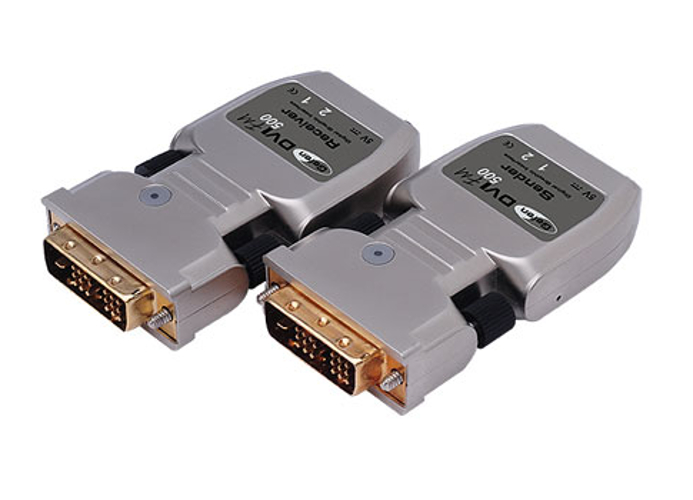

Gefen Inc EXT-DVI-FM500
DVI Over Fiber Optic Extender

OUR PART #:  EXT-DVI-FM500

The DVI-FM500 Extender lets you extend your DVI source up to 5,000 feet away using a 100% fiber optic extention solution.
Learn More
Our Price: $823.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Gefen Inc EXT-DVI-FM500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The DVI-FM500 Extender lets you extend your DVI source up to 5,000 feet away using a 100% fiber optic extention solution.  Attractive and compact DVI-to-fiber modules connect to each other via just two LC fiber optic cable strands.  Extender units fit neatly behind equipment for a clean installation.

Gefen Inc. EXT-DVI-FM500 Features:

  • Extends resolutions up to WUXGA (1920x1200) @60Hz upto 5,000 feet away.
  • Immune to EMI (electromagnetic interference) thanks toall-fiber signal transmission media
  • Automatic EDID Programming feature enables quick andcorrect sync of source to display
  • Compact Sender and Receiver units install in minutes
  • Supports both singlemode and multimode fiber opticcable types
  • Fully Supports DVI 1.0 and DDC2B via virtual DDC

Gefen Inc. EXT-DVI-FM500 Specifications:

  • Video Amplifier Bandwidth: 165MHz
  • Maximum Single Link Resolution: WUXGA (1920x1200)
  • Default EDID: UXGA (1600x1200)
  • Video Input (Sender): DVI-D SL 24-Pin Female
  • Video Output (Receiver): DVI-D SL 24-Pin Female
  • Fiber Link Connectors (Sender/Receiver): Dual LC-LCSM/MM (each)
  • LED Indicators (Sender/Receiver): (1) EDID Status
  • Program Button (Sender): EDID Program (recessed)
  • Power Supply: 5V DC (Required for Receiver; Optionalfor Sender)
  • Power Consumption: 2.2 Watts (Typical, Each)
  • Dimensions (WxHxD): 1.5" x 0.6" x 2.7"
