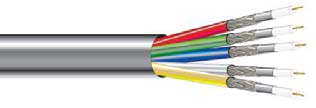

West Penn 255CRGB-500
25AWG Miniature RGBHV Coaxial Cable - Plenum, 500'

OUR PART #  255CRGB-500

Our Price: $552.00
List Price: $820.40
You save 33%! (Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

5-miniature - 5 Conductor 25AWG Solid Conductor cable for indor RGBHV Component Video applications, plenum rated. 500' spool.

INDIVIDUAL CABLE CONSTRUCTION PARAMETERS

  • Conductor: 25AWG Bare Copper
  • Stranding: Solid
  • Insulation Material: Foam FEP - Teflon
  • Insulation Thickness: .073 Nom.
  • Shield: 100% Aluminum Foil + 95% Tinned Spiral Braid
  • Jacket Material: Copolymer
  • Individual Cable Diameter: 0.105" Nom.

OVERALL CABLE CONSTRUCTION PARAMETERS

  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.310" Nom.
  • Number of Conductors: 5 Center Conductor
  • Flame Rating: UL NFPA 62

ELECTRICAL & ENVIRONMENTAL PROPERTIES

  • Temperature Rating: -4 degrees F to 140 degrees F
  • Max Capacitance Between Conductors @ 1kHz: 16.2pf/ft Nom
  • Velocity of Propagation: 82% Nom
  • Impedance: 75 Ohms Nom
  • DC Resistance Per Conductor @ 68 degrees F
  • Jacket Colors: Red, Green, Blue, Yellow, White, Black
  • RoHS Compliant: Yes



West Penn 255CRGB-500
25AWG Miniature RGBHV Coaxial Cable - Plenum, 500'

OUR PART #  255CRGB-500

Product Information:

5-miniature - 5 Conductor 25AWG Solid Conductor cable for indor RGBHV Component Video applications, plenum rated. 500' spool.

INDIVIDUAL CABLE CONSTRUCTION PARAMETERS

  • Conductor: 25AWG Bare Copper
  • Stranding: Solid
  • Insulation Material: Foam FEP - Teflon
  • Insulation Thickness: .073 Nom.
  • Shield: 100% Aluminum Foil + 95% Tinned Spiral Braid
  • Jacket Material: Copolymer
  • Individual Cable Diameter: 0.105" Nom.

OVERALL CABLE CONSTRUCTION PARAMETERS

  • Jacket Material: Plenum PVC
  • Overall Cable Diameter: 0.310" Nom.
  • Number of Conductors: 5 Center Conductor
  • Flame Rating: UL NFPA 62

ELECTRICAL & ENVIRONMENTAL PROPERTIES

  • Temperature Rating: -4 degrees F to 140 degrees F
  • Max Capacitance Between Conductors @ 1kHz: 16.2pf/ft Nom
  • Velocity of Propagation: 82% Nom
  • Impedance: 75 Ohms Nom
  • DC Resistance Per Conductor @ 68 degrees F
  • Jacket Colors: Red, Green, Blue, Yellow, White, Black
  • RoHS Compliant: Yes
