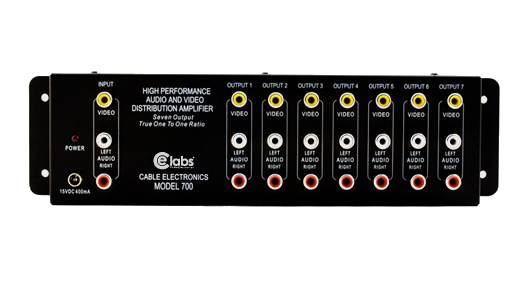

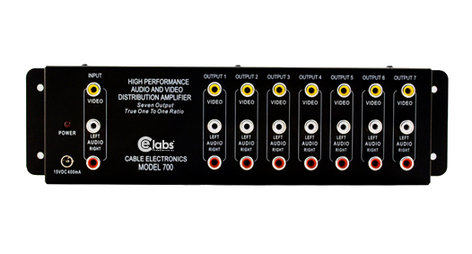

Cable Electronics AV700
1x7 Composite Video/Audio Distribution Amplifer

OUR PART #:  CEL-AV700

Our Price: $77.76
List Price: $123.99
You save 37%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Cable Electronics AV700
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Cable Electronics AV700 High Performance Composite A/V Distribution Amplifiers

The AV700 high quality amplifer allows for multiple signal distribution equal to source signal output with no signal loss. Distribute audio, composite video and s-video television signals from a single A/V source to multiple television monitors. Daisy chain several units for larger displays and great signal quality.

Cable Electronics AV700 Features:

  • Heavy duty metal housing provides excellent shielding
  • Daisychainseveral units for larger displays with great picture quality
  • Allows up to 150' runs
  • Save the expense of additional A/V receivers

Cable Electronics AV700 Specifications:

  • Video:
    • Gain: 2 Volt unterminated, 1 Volt Terminated; 75 ohms + 5%
    • Input Impedance: 75 ohms + 5%
    • Output Impedance: 75 ohms + 5%
    • Video Insertion Loss: 50Hz to 10MHz <.40dB
    • In to Out Isolation: 50Hz to 10MHz 32dB Port to Port
    • Out to In Isolation: 50Hz to 10MHz 60dB
    • Return Loss: 50Hz to 10MHz 20dB
    • Video Bandwidth: 10MHz
  • Audio:
    • Gain: Unity
    • Input Impedance: 22 kOhm
    • Output Impedance: 1 kOhm
    • THD: 0.05% at 1.0V input level
    • Frequency Response: 20 Hz to 100 kHz
    • Channel Separation: >75 dB @ 1 kHz
    • In to Out Isolation: 60 dB
    • Out to Out Isolation: 60 dB
    • Signal to Noise Ratio: 10 dB re 2V (out)
    • A/V Input/Outputs: RCA type Phono jacks
    • Power Requirements: 15 VDC @ 400 mA, 15 VDC @ 600 mA with 2.5 mm power jack. Power supply included.
