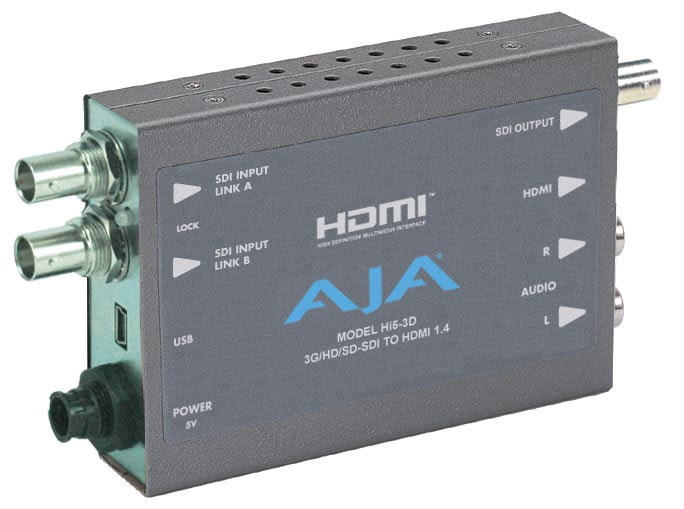

AJA Video Systems Inc Hi5-3D
HD/3G-SDI to HDMI 1.4a Multiplexer with Power Supply

OUR PART #:  HI5-3D

The AJA Hi5-3D is a 3D video multiplexer that combines two HD-SDI Inputs into various multiplexed 3D formats for output on HDMI 1.4a and HD-SDI.
Learn More
Our Price: $495.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

AJA Video Systems Inc Hi5-3D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The AJA Hi5-3D is a 3D video multiplexer that combines two HD-SDI Inputs into various multiplexed 3D formats for output on HDMI 1.4a and HD-SDI. The HDMI 1.4a output supports EDID transactions that allow automatic 2D/3D configuration per the HDMI monitor's capabilities. Input SDI 2 will be frame synchronized to input SDI 1 in 3D Modes. Embedded SDI input audio is embedded in both the HDMI and SDI outputs. 2 channel RCA audio output is also supported with user control of channel selection. The Hi5-3D supports AJA's Mini-Config application for user configuration and firmware download.

AJA Video Systems Inc Hi5-3D Features:

  • HD-SDI to HDMI 1.4a with additional SDI output
  • 10-bit HDMI 1.4a support including 3D and embedded audio
  • Additional 2 Channel RCA jack audio output
  • Setup via Dipswitch or PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
  • Uses 5-20V power (power supply included)
  • 5-year warranty

AJA Video Systems Inc Hi5-3D Specifications:

  • Input Formats:
    • 720p 50/59.94/60
    • 1080i50/59.94/60
    • 1080p23.98
    • 1080p24
    • 1080p25
  • Video Inputs:
    • Dual HD-SDI (auto-selected)
    • SMPTE-292/296/424
    • 2x BNC
    • 1 SDI for left eye input (10-bit)
    • 1 SDI for right eye input (10-bit)
  • Video output:
    • 10-bit HDMI v1.4a
    • 1 HD-SDI output, 10-bit
  • Audio Outputs:
    • HDMI embedded audio, 2 or 8 channels
    • 2 RCA-style analog outputs at -10dBV (nominal), User-assignable channels
  • Dimensions: 5.8" x 3.1" x 1" (147 x 79 x 25 mm)
  • Power +5-20 VDC regulated, 5 watts (power supply included)
