Product Overview

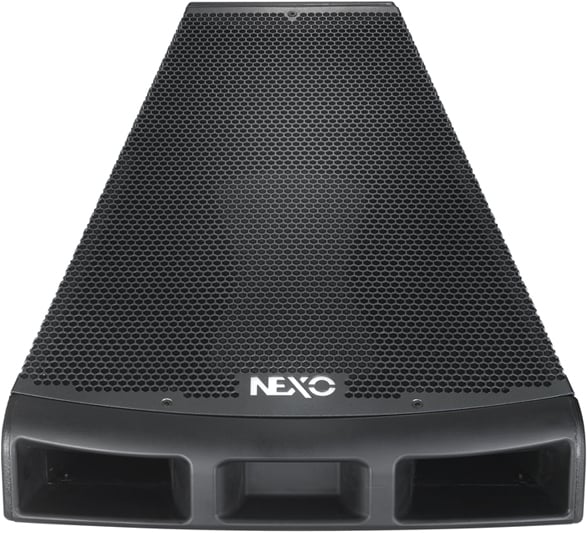

NEXO's 45°N 12 is their first 45°N dedicated monitor which brings all the benefits of line array technology to the stage. The 45°N 12 delivers very high headroom before feedback, and focuses coverage where it's needed, resulting in lower acoustic power on stage. SPL and frequency response is consistent up to 2.5 meters back.
A magnetic locking system joins multiple monitors together to form arrays. The low profile design is less conspicuous than conventional monitors (ideal for live TV production), and the 45°N 12 features a non-slip base with a skid system and ergonomic handle for easy repositioning on stage.
Features:
- Components:
- LF 1 x 12" (30 cm) high excursion Neodymium 8 ohm driver
- HF 1 x 3" voice coil, 1.4" throat Neodymium 16 ohm compression driver on a 22.5° hyperboloid reflective wave source
- Dimensions: 15.43" H x 19.37" W x 22.67" D (392 x 492 x 576 mm)
- Net Weight: 53 lbs (24 kg)
- Connectors: 2 x NL4MP Speakon 4 pole
- Construction:
- Main structure: Baltic Birch Ply finished with structured black coating.
- Rear lower and bottom section: Steel with dark grey coating.
- Front vents and rear upper section: Injected polyurethane front vents, black coating.
- Fittings: 4 handles (2 side metal recessed, 2 front and rear molded).
- Front Finish: Perforated dark grey metal grille.
- Locking Elements: Integrated magnets for mechanical locking.
System Specifications 45N-12 with NX TD Controller:
- Frequency Response [a]: 55Hz - 19kHz ±3dB.
- Usable Range @-6dB [a]: 50Hz - 20kHz.
- Sensitivity 1W @ 1m [b]: 106dB SPL Nominal / 104dB SPL Wideband.
- Nominal Peak SPL @ 1m [b]: 1 unit: 137 to 140dB Peak / 2 units: 140 to 143dB Peak.
- HF Dispersion [c]
- 30° Horizontal - Scalable 30° steps when arrayed.
- 22.5° Diagonal (Coupling Plane) - Scalable 22.5° steps when arrayed.
- 60° Vertical (Asymmetrical -45° / +15°).
- Crossover Frequencies LF-HF: 1kHz Active or Passive (internally configurable).
- Nominal Impedance Active LF 8 ohm, HF 16 ohm. Passive 8 ohm.
- Recommended Amplifiers Active LF 1000 to 1500 W 8 ohm / HF 250 to 500 W 16 ohm. Passive 1200 to 2000 W 8 ohm.
- [a] Response curves & data : Half-Space Far Field for the 45N-12 + NXTD.
- [b] Sensitivity & Peak SPL data : these will depend on spectral distribution and crest factor of program material. Measured with band limited Pink Noise. Nominal refers to Voice Decade (300Hz - 3kHz), Wideband to the specified ±3dB range. Data are for speaker + processor + recommended amplifier combinations. Peak SPL is at clipping of recommended amplifier.
- [c] Directivity curves & data : obtained by computer treatment on off axis response curves.
- System Operations:
- Electronic Controller: The NEXO TDcontroller's presets are precisely matched to the 45N Series cabinets and include sophisticated protection. Using 45N Series cabinets without a properly connected NEXO TDcontroller will result in poor sound quality and can damage components.
- Dispersion configuration: Internally mounted magnets allow 45N-12 inter-cabinet locking for coverage / SPL scalability.
- Sub-bass: LS600 extends system low frequency response down to 38 Hz.
- Speaker Cabling:
