DBX 234s Stereo 2-way, 3-way or Mono 4-way Crossover

OUR PART #: 234S MFR #: DBX234SV

Copied to clipboard

The secret to making speakers sound great lies with the crossover you use. ...Read more

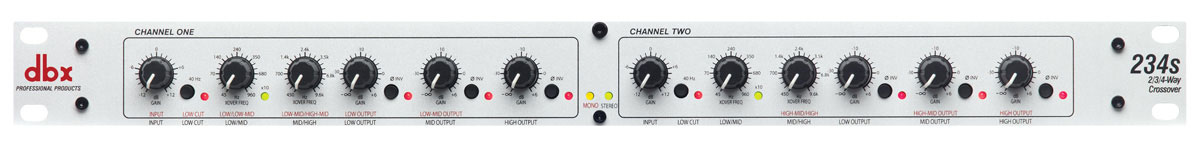

DBX 234s Stereo 2-way, 3-way Or Mono 4-way Crossover Image 1
DBX 234s Stereo 2-way, 3-way Or Mono 4-way Crossover Image 2
DBX 234s Stereo 2-way, 3-way Or Mono 4-way Crossover
Our Price: $289.00
List Price: $351.93
You save 18%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$9/mo* with 36 month financing. ‡
Limited Time. Learn How

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The secret to making speakers sound great lies with the crossover you use. The dbx® 234s Crossover is the culmination of four decades of dbx expertise; you'll get great performance, ultra low-noise, and rugged reliability. The 234s uses precision filters to separate the audio signal and direct the correct frequencies to your loudspeaker drivers. Splitting the signals by frequency band means that your tweeters, woofers, and subs only receive the audio signals that they can reproduce best This means they're using their power efficiently and eliminating distortion, leaving you with the cleanest sound your sound system can provide.

The dbx 234s is considered a "dual channel crossover," but it offers so many more options than that. You can toggle between three modes: Stereo 2-way (splitting high- and low-frequencies left and right), stereo 3-way (splitting highs, mids, and lows left and right), or mono 4-way (highs and high mids through channel 2, low mids and lows through channel 1). All of the 1/4" inputs and outputs are clearly labeled to make installation simple!

Besides that, it with all the features you would expect from a professional product. It features Linkwitz-Riley 24 dB per octave filters, independent output gain controls for level matching, output phase inversion, 40 Hz low cut filter, and optional mono summing of the low frequency (subwoofer) output. Everything in the design exudes great precision from the solid "click" controls to the high quality 1/4" TRS inputs and outputs.

Make the most out of your 2-, 3- or 4-way sound system with the dbx 234s today!

Features

  • TRS differentially balanced ins and outs
  • Mode switches for mono 4-way or stereo 2- or 3-way operation
  • Low frequency summed (subwoofer) output
  • x10 range switch on both channels
  • 40 Hz high pass (low cut) filter both channels
  • Phase reverse switch on all outputs
  • Individual level controls on all outputs
  • 24 dB per octave Linkwitz-Riley filters (the professional standard)
  • Stereo/Mono status LEDs indicate the selected mode
  • dbx 2 year parts and labor as standard
  • CSA NRTL/C approved
  • CE compliant

Specifications

  • Input Connectors: 1/4" TRS
    • Input Type: Electronically balanced/unbalanced, RF filtered
    • Input Impedance: Balanced >50 kΩ, unbalanced >25k Ω
    • Max Input: >+22 dBu balanced or unbalanced
    • CMRR: >40 dB, typically >55 dB at 1 kHz
  • Output Connectors: 1/4" TRS
    • Output Type: Impedance-balanaced/unbalanced, RF filtered
    • Output Impedance: Balanced 200 Ω, unbalanced 100 Ω
    • Max Output: >+21 dBu balanced/unbalanced into 2 kΩ or greater
  • Bandwidth: 20 Hz to 20 kHz, +/-0.5 dB
  • Frequency Response: < 3 Hz to > 90 kHz, +0/-3 dB
  • Signal to Noise Ratio: Ref: +4 dBu, 22 kHz measurement bandwidth
    • Signal-to-Noise (Stereo Mode): >94 dB (Low Output), >93 dB (Mid Output), >90 dB (High Output)
    • Signal-to-Noise (Mono Mode): >94 dB (Low Output, Low/Mid Output); >92 dB (High/Mid Output); >88 dB (High Output)
  • Dynamic Range: > 106 dB, unweighted, any output
  • THD+Noise: < 0.004% at +4 dBu, 1 kHz; < 0.04% at +20 dBu, 1 kHz
  • Interchannel Crosstalk: < -80 dB, 20 Hz to 20 kHz
  • Crossover Frequencies (Stereo Mode):
    • Low/Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Low/High: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Mid/High 450 Hz to 9.6 kHz (x10 setting)
  • Crossover Frequencies (Mono Mode):
    • Low/Low-Mid: 45 to 960 Hz or 450 Hz to 9.6 kHz (x10 setting)
    • Low-Mid/High-Mid: 450 Hz to 9.6 kHz
    • High-Mid/High: 450 Hz to 9.6 kHz
  • Crossover Filter Type: Linkwitz-Riley, 24 dB/octave, state-variable
  • Low cut Switch: Activates 40 Hz Butterworth, 12 dB/octave high-pass filter, one switch per channel.
  • Phase Invert Switch: Inverts the phase at the output, one switch per output.
  • Mode Switch: Selects stereo/mono and 2/3/4-way operation
  • LF Sum Switch: Selects normal (stereo) or mono-summed low frequency operation and disables Ch 2’s low output phase invert LED to indicate that this output is not operational in the LF sum mode.
  • Indicators: Stereo Operation (Green); Mono Operation (Yellow); Low Cut (Red-per channel); x10 (Green-per channel); Phase Invert (Red-per output)
  • Operating Voltage: 100-120 VAC 50/60 Hz; 120 VAC 60 Hz 230 VAC 50/60 Hz
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • Power Consumption: 15W
    • Power Connector: IEC receptacle
  • Dimensions (H x W x D): 1.75" x 19" x 6.9" (4.4 x 48.3 x 17.5 cm)
  • Unit Weight: 4.0 lbs. (1.8 kg)
