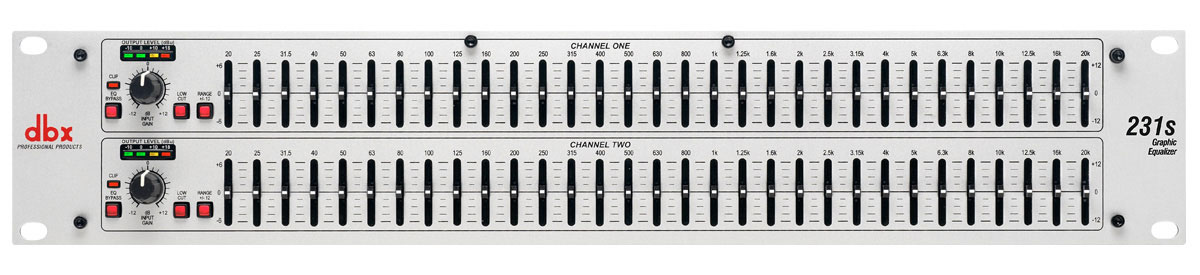

DBX 231s
Dual 31-Band Channel 1/3 Octave Graphic Equalizer

OUR PART #:  231S

The dbx 231s includes two 31-band channels of 1/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range...
Learn More
Sale Price: $149.00
List Price: $249.00
You save 40%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

DBX 231s
Qty:
In Stock
Similar Products

The dbx 231s includes two 31-band channels of 1/3-octave equalization, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering. From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 231s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Sure to find a home in the studio, on tour and with installed sound venues, the dbx 231s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

dbx 231s Features:

  • Dual 31-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of ±6 or ±12 dB
  • Front panel bypass switch
  • ±12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS Inpts and Outputs
  • Frequency Repsonse of <10 Hz to >50 kHz
  • Dynamic range of greater than 108 dB

dbx 231s Specifications:

  • Input Connectors: 1/4" TRS, female XLR (pin 2hot)
  • Input Type: Electronically balanced/unbalanced, RF filtered
  • Input Impedance: Balanced 40 kOhm, unbalanced 20 kOhm
  • Max Input: >+21dBu balanced or unbalanced
  • CMRR: >40dB, typically >55 dB at 1 kHz
  • Output Connectors: 1/4" TRS, male XLR (pin 2 hot)
  • Output Type: Impedance-balanced/unbalanced, RF filtered
  • Output Impedance: Balanced 100 ohm, unbalanced 50 Ohm
  • Max Output: >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
  • Bandwidth: 20Hz to 20kHz, +0.5/-1 dB
  • Frequency Response: <10 Hz to >50 kHz,+0.5/-3 dB
  • Dynamic Range: Typically >112dB
  • Signal to Noise Ratio: Typically >95dB
  • THD+Noise: <0.003%
  • Interchannel Crosstalk: <-90 dB, 20 Hz to 20 kHz
  • Bypass Switch: Bypasses the graphic equalizer section in the signal path
  • Low cut Switch: Activates the 50Hz 12dB/octave high-pass filter
  • Range Switch: Selects either +/- 6 dB or +/-12 dB slider boost/cut range
  • Operating Voltage: 100-240VAC 50/60Hz
  • Power Consumption: 15W
  • Power Connector: IEC receptacle
  • Unit Weight: 6.2 lbs.(2.81 kg)
  • Shipping Weight: 7.9 lbs.(3.58 kg)
  • Dimensions (HxDxW): 3.5" x 6" x 19" (8.9 x 15.24 x 48.26 cm)
