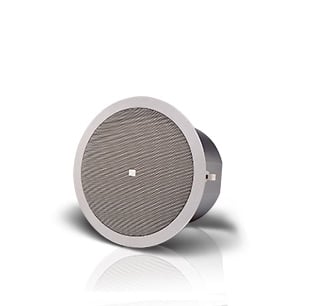

JBL Control 26CT-LS
Ceiling Speaker for Life and Safety Applications

OUR PART #:  CONTROL-26CT-LS

JBL's Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.
Learn More
Our Price: $170.00
List Price: $212.00
Call for Special Sale Price!

This product must be purchased in multiples of 2

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL Control 26CT-LS
Qty:
In Stock

Similar Products

JBL's Control 26CT-LS is a compact ceiling speaker providing premium performance in background or foreground music sound systems.

JBL Control 26CT-LS Features:

  • UL1480 UUMW Listed for use in Fire Alarm and/orEmergency Communication Systems.
  • Coaxially mounted 165 mm (6.5") woofer withbutyl rubber surround and 19 mm (3/4") titanium-coated diffraction-loaded tweeter
  • High power, wide frequency response and low distortionfor high sound level capability
  • Packaged with grille, backcan and tile rails for fast installation and easy dealer stocking

JBL Control 26 CT-LS Specifications:

  • Frequency Range: 80 Hz - 20 kHz
  • Power Capacity: 150 W Continuous Program Power; 75 W Continuous Pink Noise
  • Transformer Taps:
    • 70V: 60W, 30W, 15W & 7.5W
    • 100V: 60W, 30W, & 15W
  • Nominal Coverage Angle: 110┬░ conical coverage
  • Directivity Index (DI): 4.6 averaged 500 Hz to 4 kHz
  • Rated Maximum SPL: 107 dB @ 1 m (3.3 ft)
  • Low-Frequency: 165 mm (6.5") Polypropylene-coated, 1" coil on aluminum former
  • High-Frequency: 19 mm (3/4") Titanium coated polyester
  • Termination: Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire 12 AWG (2.5 mm2)
  • Dimensions: 8.3" H x 9.9" Dia. (210 x 252 mm), 7.5" (190 mm) front of ceiling tile to back of backcan
  • Net Weight (each): 10 lbs (4.2 kg)
  • Shipping Weight (pair): 21 lbs (9.7 kg)
