ETC/Elec Theatre Controls 450HID-150-A
150W 50° Source Four HID Ellipsoidal with Edison Connector

OUR PART #:  450HID-150-A

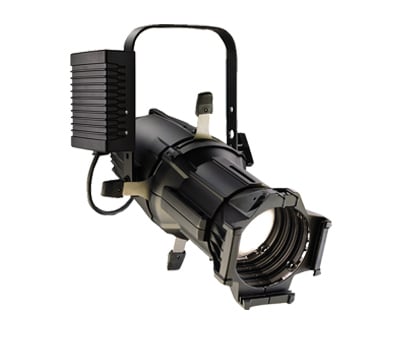

From their HID Ellipsoidal Series, ETC offers the 450HID-150-A, a Source Four® 70W HID 50° ellipsoidal that is black in color.
Learn More
Sale Price: $486.29
List Price: $1,138.00
You save 57%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

ETC/Elec Theatre Controls 450HID-150-A
Qty:
In Stock
Similar Products

From their HID Ellipsoidal Series, ETC offers the 450HID-150-A, a Source Four® 70W HID 50° ellipsoidal that is black in color. Its connector designation is a Parallel-blade U-ground connector, 120V. The ETC Source Four 70W HID is supplied with Philips CDM MasterColor 70W ceramic metal halide lamp, color frame and 6’ (1.8 meter) leads as standard.  Source Four HID fixtures are also supplied with a slot for either a drop-in iris or motorized pattern device. Six-foot, three-wire leads, no connector, are shipped as standard. This version comes in a black finish with a parallel-blade U-ground connector.

ETC 450HID-150-A Features:

  • 50° field angles
  • Ballast offers greater than 90% efficiency
  • Multi-faceted glass reflector
  • Rotating barrel ± 25%
  • Interchangeable lens tubes
  • Rugged die-cast aluminum construction
  • Three-plane stainless-steel shutter blade assembly

ETC 450HID-150-A Specifications:

PHYSICAL

  • Yoke mounted electronic ballast
  • Rugged, die cast aluminum construction
  • Rotating shutter assembly ± 25°
  • 20 gauge stainless steel shutters in a tri-plane assembly
  • Interchangeable lens tubes with smooth-running teflon guides provide nine user-selectable field angle options
  • Thermally insulated rear handle
  • High impact, thermally insulated knobs and shutter handles
  • Two accessory slots and a top mounted, gel frame retainer
  • Steel yoke with two mounting positions
  • Positive locking single-clutch fixture body
  • Slot for glass or stainless steel patterns
  • Wide accessory slot with sliding cover for motorized pattern devices or optional iris
  • UL and cUL Listed for damp locations

ELECTRICAL

  • 70W electronic ballast (yoke mounted)
  • Less than 10% Harmonic distortion
  • Greater than 95% Power Factor
  • 90% Ballast Efficiency
  • 120V Ballast:
    • 120V±10%, 60Hz
    • 0.7 Amps operating current*
  • Shiping Weight  21 lbs
  • Shiping Dimensions  11.5" x 11.5" x 26"
