Product Overview
The best that the G3 300 series has to offer for the voice: top-notch condenser technology coupled with a true diversity receiver. This system captures every last nuance and detail of the vocalist. A programmable mute button on the microphone lets the user decide when it is time to go “on-air.”

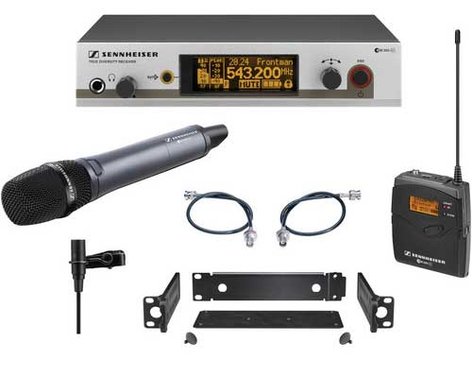

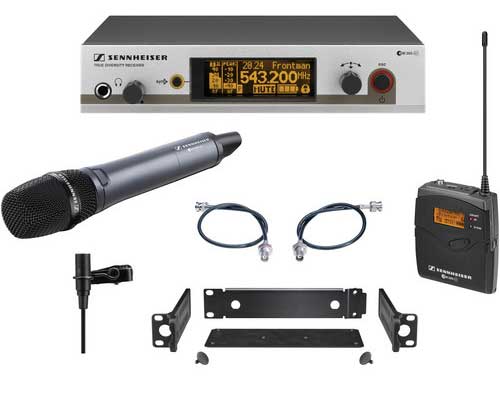

Delivery Includes:
- EM 300 G3 rack-mount receiver
- SKM 300-865 G3 handheld transmitter (super-cardioid, condenser)
- MZQ 1 microphone clip
- GA 3 rack mount
- NT 2 power supply unit
- 2 antennas
- 2 AA size batteries
- Operating instructions
Features
- Sturdy metal housing (transmitter and receiver)
- 42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 24 compatible frequencies
- Ethernet port for connecting to the Wireless Systems Manager (WSM) software for control via computer - this delivers a good overview of monitoring and professional data management for multi-channel systems
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitter parameter from receiver
- User-friendly menu operation with more control options
- Illuminated graphic display, receiver also shows transmitter settings
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute button on transmitter body
- Easy-exchangeable microphone modules from evolution series
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Wide range of accessories adapts the system to any requirement
Specifications:
- RF frequency range: 516 ..... 865 MHz
- Transmission/receiving frequencies: 1680
- Presets: 12
- Switching bandwidth: 42 MHz
- Peak deviation: +/- 48 kHz
- Compander: HDX
- Frequency response (microphone): 80.....18000 Hz
- Signal-to-noise ratio: > 110 dB(A)
- THD, total harmonic distortion: < 0,9 %
- In compliance with: ETS 300422 , ETS 300445 , CE , FCC
- Antenna connector: 2 BNC, 50 Ohm
- Audio-XLR connector: 6,3 mm
- Audio output level (balanced): XLR: +18 dBu max
- Audio output level (unbalanced): Jack: +10 dBu max
- Dimensions (Receiver): 212 x 202 x 43 mm
- Weight (Receiver): 900 g
- RF output power: 30 mW
- Operating time (transmitter): >8 h
- Dimensions (Transmitter): d= 50 mm, l= 265 mm
- Weight (Transmitter): 450 g
- Transducer; Microphone type: dynamic
- AF sensitivity: 2,1 mV/Pa
- Sound pressure level (SPL): 154 dB(SPL) max.
- Pick-up pattern: cardioid
