RDL EZ-HK1 Stereo Audio "HUM KILLER"

OUR PART #: EZ-HK1 MFR #: EZ-HK1

Copied to clipboard

Radio Design Labs' EZ-HK1 is a quality stereo audio transformer isolation module for use with unbalanced, high impedance audio inputs. ...Read more

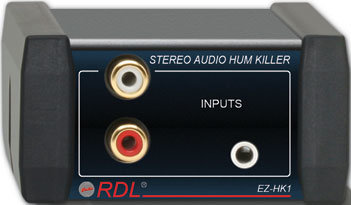

RDL EZ-HK1 Stereo Audio "HUM KILLER" Image 1
RDL EZ-HK1 Stereo Audio "HUM KILLER" Image 2
RDL EZ-HK1 Stereo Audio "HUM KILLER"
Our Price: $121.72
List Price: $162.29
You save 25%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$4/mo* with 36 month financing. ‡
Limited Time. Learn How
Item usually available to ship in 5-9 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

Radio Design Labs' EZ-HK1 is a quality stereo audio transformer isolation module for use with unbalanced, high impedance audio inputs. Input and output connections are provided on gold-plated RCA jacks.

The shield connection of each input jack is electrically isolated from the case and from the output ground. The shield connection of each output jack is connected to the case shield through a rear-panel ground-lift switch.

The EZ-HK1 eliminates hum due to ground loops when it is installed between an unbalanced audio source, such as a computer, CD player, cassette player or other consumer audio product, and the input of a grounded amplifier in an audio system.

Features:

  • Audio Ground-Loop Hum Elimination
  • Unbalanced Stereo Galvanic Isolation
  • Inputs and Outputs on RCA and Mini Jacks
  • Switch-Selectable Ground Lift for Output Jacks
  • Portable Use or Permanent Installation
  • Gold-Plated RCA Connectors
  • Conversion between Mini-jack and RCA formats
  • Ground-Lift Switch

Specifications

  • Typical Performance:
    • Inputs: Stereo on RCA Phono jacks, Stereo Mini-jack, -10 dBV nominal, ground-isolated
    • Input Impedance: 10 kOhm
    • Outputs: Stereo on RCA Phono jacks, Stereo Mini-jack, -10 dBV nominal
    • Output Impedance: 10 kOhm
    • Output Ground Isolation: Switch-selectable
    • Gain: Unity nominal (passive circuit)
    • Frequency Response: 20 Hz to 20 kHz (+/- 1 dB)
    • Total Harmonic Distortion: < 0.05% (1 kHz)
    • Crosstalk: < -75 dB (20 Hz to 10 kHz), < -65 dB (10 kHz to 20 kHz)
    • Case dimensions: 2.9" W x 3" D (7.4 x 7.6 cm)
    • Mounting size: 1/6 rack width
