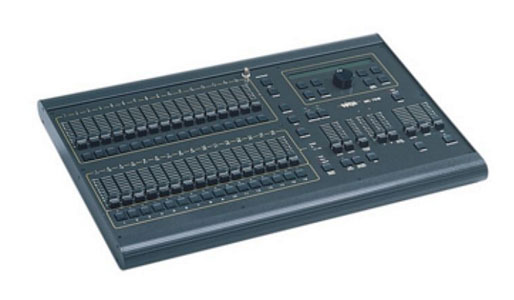

Leviton N7516-000 16/32 Channel Memory Console

16/32 channel memory console with 256 memory scenes and 16 submasters. The 7500 series features operational modes such as cue stacking and level sensitive chasing. The encoder wheel and LCD readout make onboard editing quick and easy.

Leviton N7516-000 Memory Console Specifications:

• 16/32 individual control channels
• 256 user programmable memory scenes
• 16 user programmable level sensitive chase effects
• 16 independent cue stacks allow combinations of memory scenes and chases to be arranged as steps in a playback sequence. Program precise fade times to each step or use the manual stack fader from step to step
• Chase control functions include master level, rate, instant on/off or the fade rate between each chase step & the direction of the chase
• Dual split dipless crossfaders proportionally vary the intensity of levels between scenes A and B
• Individual channel bump buttons with master bump level slider
• Channel and scene bump button modes include momentary, toggle on/off, killmode (allows only one button to toggle at a time) and solo mode which overrides console output except for the bump buttons that are pressed
• Soft patch up to 512 dimmers
• Audio sync
• MIDI show control and SMPTE time code via MIDI to activate scenes
• On board help function
• Fully protected non-volatile EEPROM memory (10 year retention)
• Universal internal power supply
• Preheat function can be set from 0-20% of output level providing faster lamp response and longer lamp life Console locks include Record and Set up,which prevent unauthorized or accidental changes to programming or configuration
• NSI 128 channel Micro-Plex out (3-pin XLR male and female)DMX512 digital control (female 5-pin XLR)
• MIDI in/out/through (5-pin DIN)
• Audio in (RCA type female)
