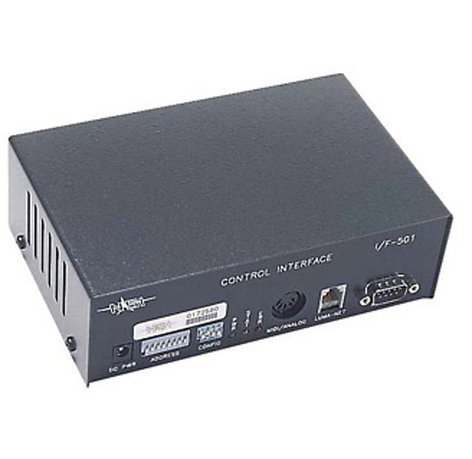

Leviton N0501-002
MPX/DMX to CMX Protocol Converter & Auto-Sequence Control Device

OUR PART #:  N0501-002

Leviton-NSI's N0501-002 is your simple solution for dimmer and control systems compatibility, and is one of the (I/F) 501 series of Control Interfaces.
Learn More
Our Price: $336.12
List Price: $367.74
You save 9%!
Write the first review.
Leviton N0501-002
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

Leviton-NSI's N0501-002 is your simple solution for dimmer and control systems compatibility, and is one of the (I/F) 501 series of Control Interfaces. Increased flexibility of control system design is achieved with the multiple signal ports and protocols available with these (I/F) 501 boxes. They may be configured to combine and convert analog, analog multi-plex and digital control signals.

In addition to interfacing a variety of control signals, (I/F) 501 series are programmable as stand-alone auto sequence control devices. Eight preprogrammed crossfading chase effects with step times from 1 to 60 seconds may be selected. A precision 20 cue sequence with fade and wait times from .1 second to 50 minutes may be programmed into the non-volatile memory via the RS-232 port and triggered remotely. (CMX to DMX) The Leviton Interface (I/F) 501 series are flexible protocol interface devices with a host of different in/out combinations of the following protocols (depending upon the model): DMX512, CMX, AMX, Microplex, Luma-Net, Midi, RS232, and 0-10v analog, (CMX to DMX).

The N0501-002 in particular, is a protocol converter and auto-sequence control device for MPX/DMX to CMX.

Leviton-NSI N0501-002 Features:

  • 8 Pre-programmed auto sequence chases for stand-alone operation
  • Programmable 20 cue sequence ASCII text files control 16 channels for stand-alone operation
  • Interface between a computer and the Luma-Net network for programming Luma-Net stations
  • Trigger Luma-Net pre-sets with external contact closures
