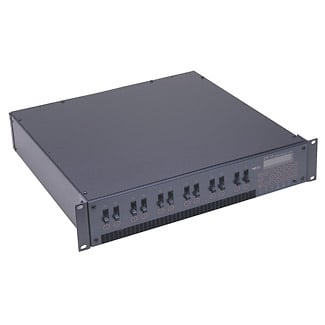

Leviton NDS12-1EO
DS 12-12E 12-Channel 1200W/CH Modular Rack Mount Dimmer/Relay System with Edison Output Panel

OUR PART #:  NDS12-1E0

The 19" DS digital dimmer line from Leviton combines convenient mobility with a rugged design and high caliber performance for a variety of lighting application demands.
Learn More
Our Price: $2,190.49
List Price: $2,396.60
You save 9%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping


We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price


Leviton NDS12-1EO
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
The 19" DS digital dimmer line from Leviton combines convenient mobility with a rugged design and high caliber performance for a variety of lighting application demands. The DS dimmer racks include a 16-character LCD and front panel keypad for intuitive access to features.

Leviton NDS12-1E0 Dimmer System Features:

  • 20 button function keypad
  • Liquid crystal display (backlit 16 character x 2line)
  • 400 programmable time fade presets
  • Non-volatile EEPROM preset and softpatch storage
  • Valid DMX signal indicator
  • Valid NSI Micro-Plex signal indicator
  • Line power indicator LED's
  • Individual dimmer load LED indicators
  • Temperature status LED
  • Front panel accessible DMX512 termination switch
  • 120V input power
  • 15V RMS preheat range
  • Adjustable level test switches can be set to bump or latchaction
  • Over voltage and over temperature protection


  • Individual dimmer test/ lamp focus buttons
  • 10,000 AIC branch rated fully magnetic circuitbreakers
  • Rugged dual SCR dimmer design
  • Automatic line regulation/compensation for powerfluctuations
  • 8 channel/single phase power operation
  • 12 channel/single or three phase power operation
  • 1 output per dimmer
  • Available in 1.2kW and 2.4kW versions
  • Programmable maximum and minimum levels for eachdimmer
  • Pre-programmed dimming curve for Advance Mark X™ fluorescentdimming ballast
  • Dimmer feedback via LCD screen including current temperature,control level and type of control signal


  • Unique modular dimmer design
  • Unique modular control electronics design
  • Modules are front panel accessible and plug-able for easyservice
  • Highest power density on the market, requiring only 2 EIA 19"rack spaces
  • Internal variable speed cooling fan
  • Recommended minimum of two rack spaces between packs tomaintain adequate cooling


  • DMX512 in/out (5 pin XLR male and female)
  • NSI Micro-Plex in/out (3 pin XLR male and female)
  • NSI Luma-Net® architectural (plug-able 6 screw terminal blocktype)
  • O-10VDC analog control Inputs (15 pin D-Sub, male)

DS 12-12:

  • 12-1200 watt dimmer/relay channels
  • 14,400 watts maximum power capability
  • 2 pole 60 amp/3 pole 40 amp power feed
  • 400 microsecond toroidal filtering
  • *Edison Connectors
