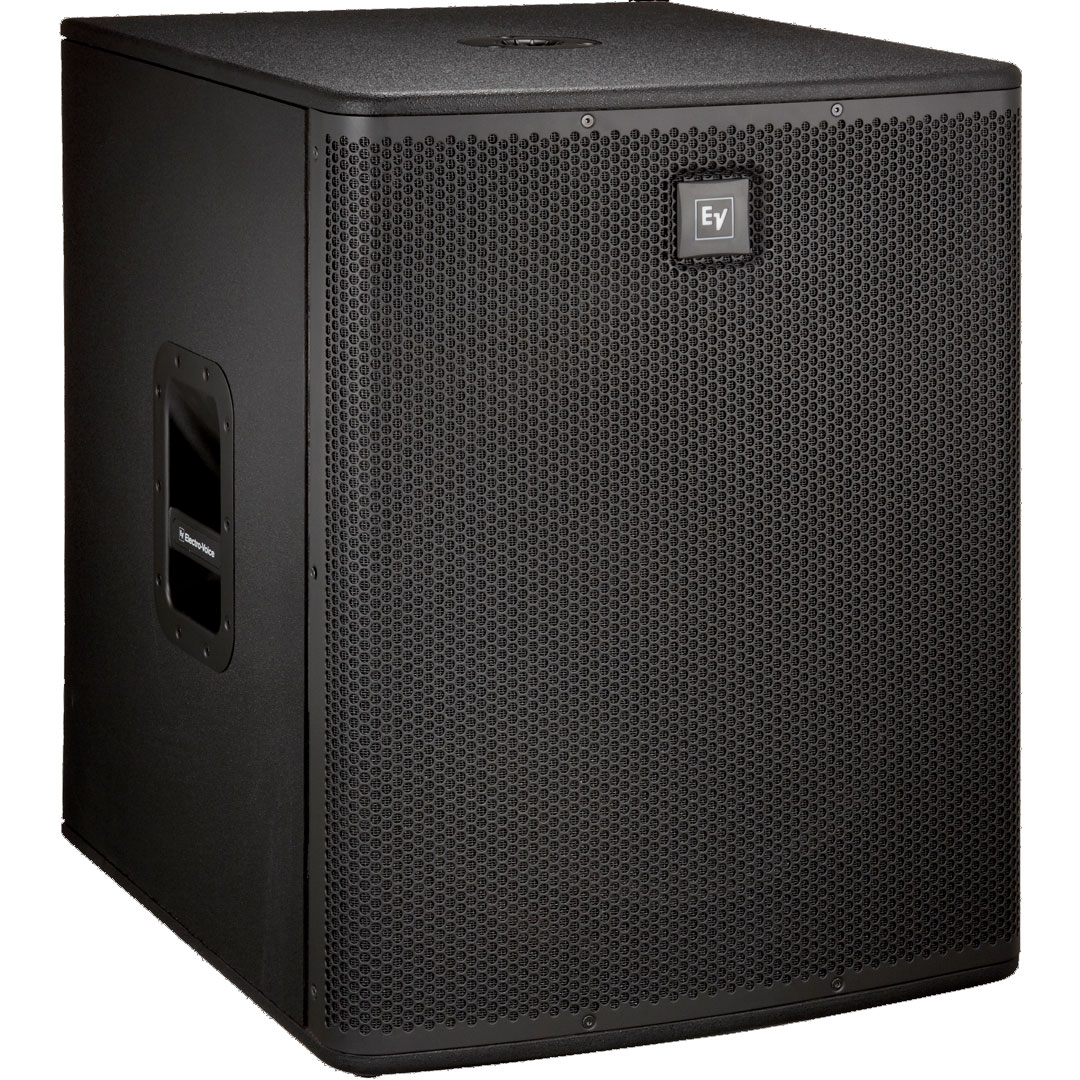

Electro-Voice ELX118
Subwoofer, 18", 400W @ 8ohms, Passive, Live X series

OUR PART #:  ELX118

Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.
Learn More
Our Price: $499.00
List Price: $877.00
You save 43%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ELX118
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products
Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.

Features:

  • Designed for House of Worship, Pro Music, and other applications.
  • 18” woofer provides extended low-frequency output
  • 32 Hz – 200 kHz frequency range 96 dB SPL sensitivity; 134 dB max SPL
  • 400 W continuous and 1600 W peak power handling
  • Rugged wood cabinet—supports pole-mounted or stacked Live Loudspeakers

Specifcations:

  • Axial Sensitivity 96 dB
  • Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
  • Frequency Response (-3 dB) 50 Hz - 100 Hz Hz
  • Frequency Response (-10 dB) 35 Hz - 200 Hz Hz
  • Recommended High-Pass Frequency 30 Hz
  • Max. SPL/1m (calc) 134 dB
  • Coverage
    (Nominal -6 dB) H° Omnidirectional °
  • Coverage
    (Nominal -6 dB) V° Omnidirectional °
  • LF Transducer (1) EVS-18K, 457mm (18”) Woofer
  • HF Transducer N/A
  • Crossover Frequency N/A Hz
  • Nominal Impedance (Passive) 8 O
  • Minimum Impedance 6.7 O
  • Connector Type Dual NL4
  • Grill 18GA Steel with Black Powdercoat
  • Height 661 mm (26.02")
  • Width 507 mm (19.96")
  • Depth 574 mm (22.6")
  • Weight Net 31.8 kg (70.11 lbs)
  • Shipping Weight 35.4 kg (78.04 lbs)
