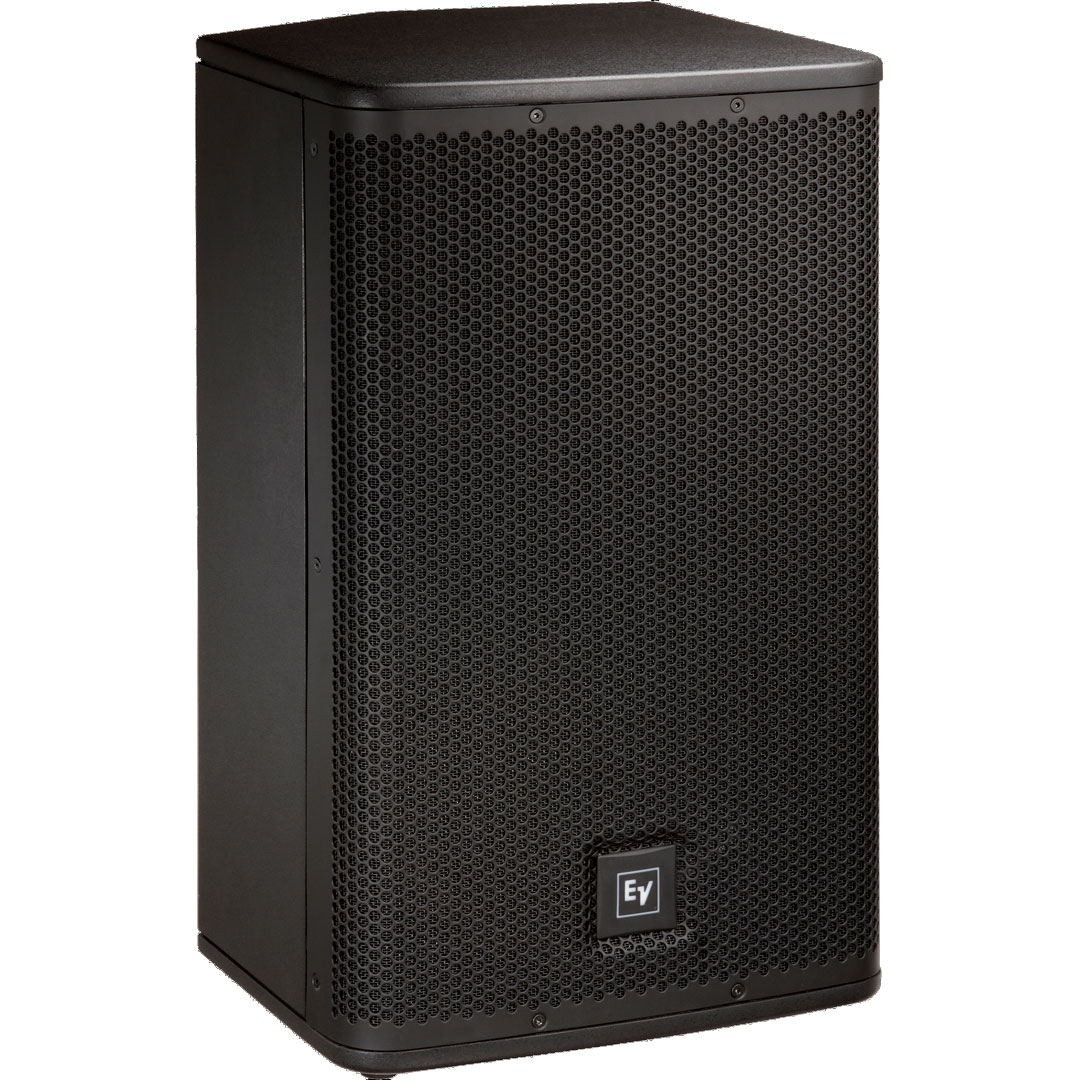

Electro-Voice ELX112
Speaker, 12" 2-way, 250W @ 8ohms, Passive, Live X series

OUR PART #:  ELX112

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.
Learn More
Our Price: $299.00
List Price: $524.00
You save 43%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Electro-Voice ELX112
Qty:
In Stock
Similar Products

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

Electro-Voice ELX112 Features:

  • Designed for House of Worship, Pro Music, and other applications
  • 12" woofer and 1.5" high-frequency titanium compression driver
  • 55-Hz – 20-kHz frequency range
  • 94-dB SPL sensitivity; 132-dB max SPL
  • 250-W continuous and 1000-W peak power handling
  • Rugged wood cabinet — pole-mounts or stacks with Live X subwoofers
  • Pole-mounts or stacks with Live X Subwoofers
  • High Frequency Waveguide with 90° x 50° Coverage Pattern
  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint

Electro-Voice ELX112 Specifications:

  • Axial Sensitivity: 94 dB
  • Case Material: 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
  • Frequency Response (-3 dB): 82 Hz - 18 k Hz
  • Frequency Response (-10 dB): 55 Hz - 20 k Hz
  • Recommended High-Pass Frequency: 45 Hz
  • Max. SPL/1m (calc): 132 dB
  • Coverage: (Nominal -6 dB) H° 90 °
  • Coverage: (Nominal -6 dB) V° 50 °
  • LF Transducer: (1) EVS-12K, 12” (305mm) Woofer
  • HF Transducer: DH-1K, 1.5” (39mm) Titanium Diaphragm Compression Driver
  • Crossover Frequency: 2.1 k Hz
  • Nominal Impedance (Passive): 8 Ohm
  • Minimum Impedance: 7 Ohm
  • Connector Type: Dual NL4
  • Grill: 18GA Steel with Black Powdercoat
  • Dimensions (HxWxD): 23.9" x 14.25" x 13.39" (607 x 362 x 340 mm)
  • Weight Net: 34.83 lbs (15.8 kg)
  • Shipping Weight: 44.09 lbs (20 kg)
Cover for ELX112  Speaker
Electro-Voice ELX112-CVR Cover for ELX112 Speaker
This is a padded cover for the Electro-Voice ELX112, a 12-inch, two-way full-range speaker.
