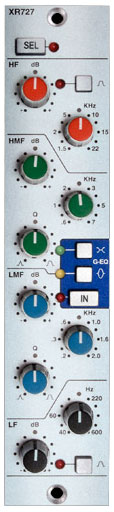

Solid State Logic XRACK-STEREO-EQ
Stereo EQ Module for XRack

OUR PART #  XRACK-STEREO-EQ

Our Price: $1,399.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The X-RACK Stereo EQ Module is a stereo version of SSL's console Channel EQ. It is a classic SSL four-band parametric EQ that is a superb all-around frequency adjustment tool kit. Whether you need pinpoit accuracy for surgical problem solving, smoother broader sound shaping, or a little more aggressive character the SSL channel EQ will give you what you need. This is a fully featured EQ with high- and low-bands switchable between shelving for fixed Q bell curves and two mid-bands each with variable Q control. This stereo verison also has a "Selecive Mode" switch which enables independent switching of high & low bands and mid bands between SSL's E & G series console EQ characteristics to provide an even more versatile EQ design.

FEATURES

  • Stereo version of the XL 9000 K Channel Equalizer as used on Duality & AWS consoles
  • 'Selective Mode' E and G characteristic switching, which enables independent switching of high & low bands and mid bands between E or G curves
  • High and low-bands switchable between shelving and fixed Q Bell curves
  • EQ IN switch for A/B comparison
  • Rear panel connections on balanced TRS Jack
  • TotalRecall Status LEDs

SPECIFICATIONS

Physical

  • Depth: 7.9"
  • Height: 6.75"
  • Width: 1.4"
  • Weight: 9.5oz

EQ Curves (HF Band Controls)

  • Frequency: Variable from 1.5kHz to 22kHz
  • Gain: Variable between +/-20dB
  • 'Q': 2.5 (On 'Bell' setting)

EQ Curves (HMF Band Controls)

  • Frequency: Variable from 600Hz to 7kHz
  • Gain: Variable by > +/-20dB
  • 'Q': Variable from 0.7 to 2.5 (may also vary with gain)

EQ Curves (LMF Band Controls)

  • Frequency: Variable from 200Hz to 2.5kHz
  • Gain: Variable by > +/-20dB
  • 'Q': Variable from 0.7 to 2.5 (may also vary with gain)

EQ Curves (LF Band Controls)

  • Frequency: Variable from 40Hz to 600Hz
  • Gain: Variable between +/-20dB
  • 'Q': 2.5 (on 'Bell' setting)

Performance

  • THD + N: <0.007% at +20dBu 1kHz // <0.007% at +20dBu 10kHz
  • Frequency Response: +/-0.5dB from 20Hz to 20kHz // -3dB at 90kHz
  • Output Headroom: > +26dBu at onset of clipping (+4dBu operating level) // > +13.5dBV at onset of clipping (-10dBV operating level)
  • Noise: <-70dBu (+4dBu operating level)
  • Noise: <-72dBv (-10dBV operating level)
