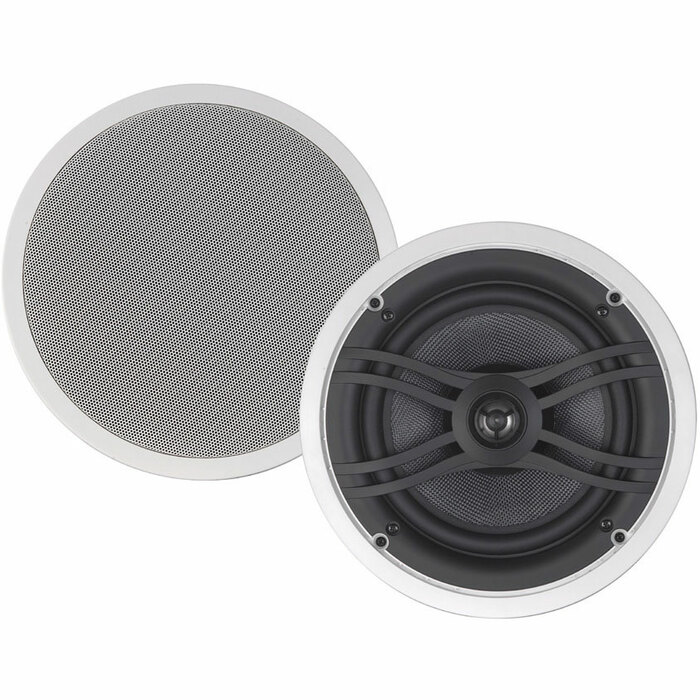

Yamaha NS-IW560C
2-Way In-Ceiling Speaker System

OUR PART #:  NS-IW560C

Yamaha's versatile NS-IW560C ceiling speaker system brings together superior sound quality and easy installation for the custom professional.
Learn More
Our Price: $199.95
List Price: $249.95
You save 20%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Yamaha NS-IW560C
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Yamaha's versatile NS-IW560C ceiling speaker system brings together superior sound quality and easy installation for the custom professional.

For Custom Installation, High Audio Quality and Easy to Install

Using high audio quality materials for drivers (Kevlar for the woofer, Titanium for the tweeter) can deliver you a professional audio quality. It's also easy to install with gold plated push type speaker terminals, paintable grills/frames, a cut-out template and a paint protective cover.

Swivel Tweeter

You can swivel the tweeter and the midrange driver to "aim" the high frequency sounds toward the main listening position. To do so, simply press on the edge of the tweeter to change the direction it faces.

Low Distortion, High Capacity Customized Crossover Network

The NS-IW560C features a customized high quality crossover network to ensure maximum sound performance. The crossover circuit is designed to minimize distortion and prevents the deterioration of transients as they pass through the network.

Other Features

  • New natural sound ceiling speaker system, ideal for custom installations
  • High-capacity, high-quality customized crossover network
  • 8" Kevlar cone woofers
  • 1" Titanium dome tweeter
  • Swivel tweeter
  • Gold-plated push-type speaker terminals
  • 150W maximum input capability
  • Paintable grill with protective cover included

Specifications

  • Recommended Usage: In-Ceiling Front/Surround Speakers
  • Type: 2-Way In-Ceiling
  • Woofers: 8" Kevlar Cone Woofer
  • Tweeters: 1" Titanium Dome Tweeter
  • Swivel Tweeter and Midrange Driver: Yes (tweeter)
  • Paintable Grill with Protective Cover Included: Yes
  • Frequency Response: 45Hz - 28kHz
  • Sensitivity: 88dB / 2.83V / 1m
  • Input Power (Maximum / Nominal): 150W / 50W
  • Impedance: 8 Ohms
  • Product Dimensions (W x H x D): 10-9/32" x 4-13/32"
  • Mounting Depth: 3-23/32"
  • Product Weight (each): 4.5lbs
