Product Overview

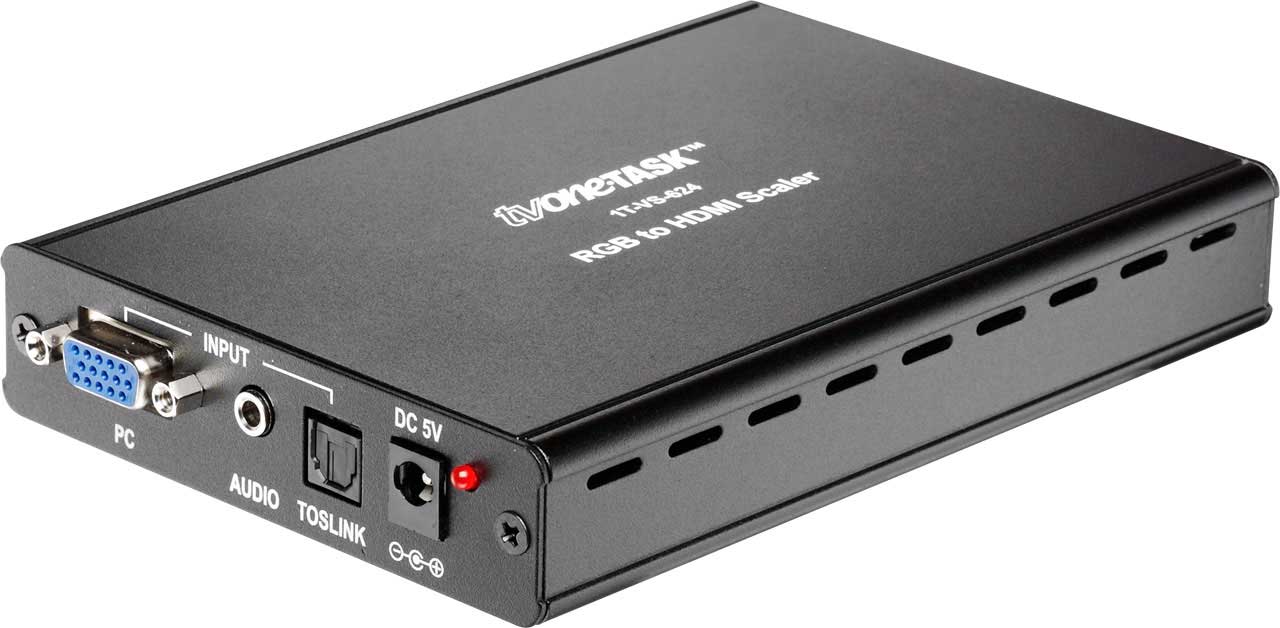

TV One's 1T-VS-624 RGB to HDMI Scaler will convert a wide variety of standard PC (RGB) signals between VGA and WUXGA to a standard HDMI output at PC, SD or HD resolutions. In addition, externally available audio can be embedded into the output HDMI signal via separate Toslink and Analog Stereo Inputs. Output audio, embedded in the HDMI signal, is separately available as Toslink and Analog Stereo outputs providing maximum flexibility for systems integration.
The unit is HDCP compliant and DVI compatible and is ideal for situations where PC or other RGB video must be viewed on an HDMI display. The resolution of the attached display is automatically discovered by the unit. A comprehensive OSB menu allows manual selection of output resolution, adjustments of picture quality and audio input selection. A locking DC power connector is used for security.
TV One 1T-VS-624 Features:
- HDMI v1.2, HDCP 1.1, DVI 1.0 compliant
- Input: VGA through WUXGA
- Output: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
- Automatically detects HDMI display resolution
- Video level adjustments
- Supports embedded and external audio in and out
- Locking DC power adapter
TV One 1T-VS-624 Specifications:
- Video Input/Output
- PC RGB Video Input: 1x Via HD-15 Connector
- HDMI Output: 1x Via Type A Connector
- Video Performance
- Standards Compliance: HDMI v1.2, HDCP 1.1, DVI 1.0
- Input Resolutions (PC/RGB)
- VGA: 640x480 @ 60, 72, 75, 85Hz
- SVGA: 800x600 @ 56, 60, 72, 75, 85Hz
- XGA: 1024x768 @ 60, 70, 75, 85Hz
- SXGA: 1280x1024 @ 60, 75, 85Hz
- UXGA: 1600x1200 @ 60Hz
- WXGA: 1280x800 @ 60Hz
- WSXGA: 1680x1050 @ 60Hz
- WUXGA: 1920x1200 @ 60Hz
- Output Resolutions (HDMI PC)
- VGA: 640x480 @ 60Hz
- SVGA: 800x600 @ 60Hz
- XGA: 1024x768 @ 60Hz
- SXGA: 1280x1024 @ 60Hz
- UXGA: 1600x1200 @ 60Hz
- WXGA: 1280x800 @ 60Hz
- WSXGA: 1680x1050 @ 60Hz
- WUXGA: 1920x1200 @ 60Hz
- Output Resolutions (HDMI HDTV)
- 480p: 852x480 @ 60Hz
- 576p: 852x576 @ 50Hz
- 720p: 1280x720 @ 50, 60Hz
- 1080i: 1920x1080 (i) @ 50, 60Hz
- 1080p: 1920x1080 (p) @ 50, 60Hz
- Output Resolutions (HDMI SDTV)
- 480i: 852x480 @ 60Hz
- 576i: 852x576 @ 50Hz
- Video Adjustments
- Contrast
- Brightness
- Hue
- Sharpness
- Saturation
- R-G-B Levels
- Aspect Ratio
- Audio Inputs/Outputs
- Analog Stereo Input: 1x via 3.5mm Mini-Stereo
- Analog Stereo Output: 1x via 3.5mm Mini-Stereo
- Digital Input: 1x SPDIF via Toslink Connector
- Digital Output: 1x SPDIF via Toslink Connector
- Stereo Audio Performance
- Analog Inupt Level: 2Vrms max @ 47kohms
- Analog Output Level: Unity @ 47kohms
- Toslink In/Output Level: Standard Toslink level
- Mechanical
- Dimensions: 1" x 4" x 5.7"
- Weight: 12 oz
- Warranty
- Limited Warranty: Manufacturer's 3 year parts and labor
- Environmental
- Operating Temperature: +32° F to +122° F
- Operating Humidity: 10% to 90%, Non-condensing
- Storage Temperature: +14°F to +140°F
- Storage Humidity: 10% to 90% Non-condensing
- Power Requirement
- External Power Supply: 5VDC at 2A
- Regulatory Approvals
- Converter Unit: FCC, CE, RoHS
- Power Supply: UL, CUL, CE, PSE, GS, RoHS
