Philips Color Kinetics 101-000068-07
Black iColor Flex MX 50x LED Strand Light with Clear Dome Lenses, 12" On-Center Node Spacing

OUR PART #  101-000068-07

Our Price: $488.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

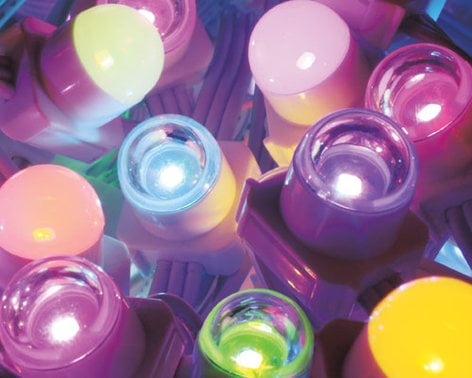

Philips Color Kinetics' iColor® Flex MX is a multi-purpose, high-intensity strand of 50 full-color LED nodes for generating extraordinary effects without the constraints of fixture size or shape.  The iColor Flex MX enables patterns and video on almost any interior or exterior surface, including ceilings, floors, 3D objects, sculptures, and more.

Philips Color Kintetics iColor® Flex MX Features:

  • Each node produces full-color output of up to 1.44 candela (full on).
  • Flexible form factor allows unique, cost-effective lighting installations, including 2D & 3D video displays.
  • Works seamlessly with the complete Philips line of controllers, including Video System Manager, Light System Manager, iPlayer 3,as well as third-party DMX.
  • Strands can be mounted to a surface, like traditional string lights, and on tracks to ensure straight linear runs. Snap-on spacers hide cabling and mounting.
  • Single node mounts can be positioned individually to support complex geometries.  Standard 50-node lengths can be shortened in the field.
  • Leader cables available in different lengths.
  • Durable and weather-resistant - Fully sealed for maximum fixture life and IP66-rated for outdoor applications.
  • Both clear and translucent dome lenses available.
  • Standard and custom leader cables - Standard leader cables of 25 ft (7.6 m), 50 ft (15.2), and 100 ft (30.5 m) can be field-cut to support specific applications.  Custom leader cable lengths are also available.
  • Durable and weather-resistant - Fully sealed for maximum fixture life and IP66-rated for outdoor applications.

Philips Color Kintetics iColor® Flex MX Specifications:

  • Color Range: 16.7 million additive RGB colors; continuously variable intensity
  • Lumen Maintenance*: 50,000+ hours L50 @ 50° C (full output)
    *L50 = 50% maintenance of lumen output (when light output drops below 50% of initial output). Ambient temperature specified.
  • Input Voltage: 7.5 VDC
  • Power Consumption: 0.5 W max. per node at full output, steady state
  • Power Factor: 0.98
  • Interface:
    • sPDS-480ca 7.5V (Ethernet)
    • PDS-60ca 7.5V (Pre-programmed or DMX /Ethernet)
  • Control System: Philips full range of controllers, including Video System Manager Pro and Light System Manager, or third-party DMX controllers
  • Node Dimensions (HxWxD): 0.63" x 0.63" x 0.75" (16 x 16 x 19 mm)
  • Weight: 13.4 oz (381 g) 50-node strand, 4 inon-center node spacing
  • Housing: Black polycarbonate
  • Lens: Clear plastic
  • Fixture Connections: Integrated watertight 3-pin connector
  • Temperature Ranges:
    • 4° – 122° F (-20° – 50° C) Operating
    • 32° F (=0° C) Handling
    • 4° – 122° F (-20° – 50° C) Startup
    • 22° – 185° F (-30° – 85° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
    • sPDS-480ca 7.5V: 16strands
    • PDS-60ca 7.5V: 2 strands
  • Certification: UL / cUL, CE
  • LED Class: Class 2 LED product
  • Environment: Dry / Damp / Wet Location, IP66

Philips Color Kinetics 101-000068-07
Black iColor Flex MX 50x LED Strand Light with Clear Dome Lenses, 12" On-Center Node Spacing

OUR PART #  101-000068-07

Product Information:

Philips Color Kinetics' iColor® Flex MX is a multi-purpose, high-intensity strand of 50 full-color LED nodes for generating extraordinary effects without the constraints of fixture size or shape.  The iColor Flex MX enables patterns and video on almost any interior or exterior surface, including ceilings, floors, 3D objects, sculptures, and more.

Philips Color Kintetics iColor® Flex MX Features:

  • Each node produces full-color output of up to 1.44 candela (full on).
  • Flexible form factor allows unique, cost-effective lighting installations, including 2D & 3D video displays.
  • Works seamlessly with the complete Philips line of controllers, including Video System Manager, Light System Manager, iPlayer 3,as well as third-party DMX.
  • Strands can be mounted to a surface, like traditional string lights, and on tracks to ensure straight linear runs. Snap-on spacers hide cabling and mounting.
  • Single node mounts can be positioned individually to support complex geometries.  Standard 50-node lengths can be shortened in the field.
  • Leader cables available in different lengths.
  • Durable and weather-resistant - Fully sealed for maximum fixture life and IP66-rated for outdoor applications.
  • Both clear and translucent dome lenses available.
  • Standard and custom leader cables - Standard leader cables of 25 ft (7.6 m), 50 ft (15.2), and 100 ft (30.5 m) can be field-cut to support specific applications.  Custom leader cable lengths are also available.
  • Durable and weather-resistant - Fully sealed for maximum fixture life and IP66-rated for outdoor applications.

Philips Color Kintetics iColor® Flex MX Specifications:

  • Color Range: 16.7 million additive RGB colors; continuously variable intensity
  • Lumen Maintenance*: 50,000+ hours L50 @ 50° C (full output)
    *L50 = 50% maintenance of lumen output (when light output drops below 50% of initial output). Ambient temperature specified.
  • Input Voltage: 7.5 VDC
  • Power Consumption: 0.5 W max. per node at full output, steady state
  • Power Factor: 0.98
  • Interface:
    • sPDS-480ca 7.5V (Ethernet)
    • PDS-60ca 7.5V (Pre-programmed or DMX /Ethernet)
  • Control System: Philips full range of controllers, including Video System Manager Pro and Light System Manager, or third-party DMX controllers
  • Node Dimensions (HxWxD): 0.63" x 0.63" x 0.75" (16 x 16 x 19 mm)
  • Weight: 13.4 oz (381 g) 50-node strand, 4 inon-center node spacing
  • Housing: Black polycarbonate
  • Lens: Clear plastic
  • Fixture Connections: Integrated watertight 3-pin connector
  • Temperature Ranges:
    • 4° – 122° F (-20° – 50° C) Operating
    • 32° F (=0° C) Handling
    • 4° – 122° F (-20° – 50° C) Startup
    • 22° – 185° F (-30° – 85° C) Storage
  • Humidity: 0 – 95%, non-condensing
  • Maximum Fixtures Per Power / Data Supply:
    • sPDS-480ca 7.5V: 16strands
    • PDS-60ca 7.5V: 2 strands
  • Certification: UL / cUL, CE
  • LED Class: Class 2 LED product
  • Environment: Dry / Damp / Wet Location, IP66
