Philips Color Kinetics 103-000025-00
ColorDial Pro Controller

OUR PART #  103-000025-00

Our Price: $355.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

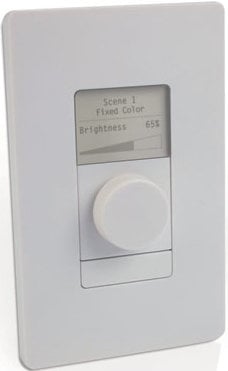

The ColorDialâ„¢ Pro is an Ethernet-based, stand-alone lighting controller and interface for color-changing LED lighting fixtures from Philips Color Kinetics.  Featuring an enhanced LCD screen for configuring effects and simple dial-and-button controls, ColorDial Pro offers fingertip triggering of full-color light shows and dynamic lighting effects.  ColorDial Pro uses Power over Ethernet (PoE) technology to eliminate the need for a separate power source, affording greater freedom of placement, and easy installation.

Philips Color Kinetics 103-000025-00 ColorDial Pro Controller Features:

  • Uses standard Power over Ethernet for increasedflexibility (IEEE 802.3af). Power over Ethernet (PoE) enables electrical powerand data to be transmitted over a single twisted-pair cable. Reducesinstallation costs, decreases required space for wires, and affords freedom ofplacement by eliminating wiring. Works with any PoE-compliant switch or PoEinjector.
  • Mounts in a standard U.S. single-gang wall box. Uses asingle CAT 5e cable for data and power with no additional wiring required.
  • Six onboard effects and eight configurable scenes —ColorDial Pro uses onboard lighting effects, eliminating the need for anexternal data source.
  • Select from six effects. Adjust effect settings suchas color, speed, and intensity as desired.
  • Store up to eight sets of effects and settings asscenes, which you can recall at the touch of a button.
  • User-configurable Custom Wash effect — Smoothlytransitions through two to six colors of your choice. Effect also lets you settransition speed and direction of movement.
  • Expanded addressing — ColorDial Pro controls up to 170unique light addresses, equivalent to one DMX universe.
  • Fingertip dimming and on/off control — Easily adjust brightness from 0% -100%, or turn connected lights on and off.

Philips Color Kinetics 103-000025-00 ColorDial Pro Controller Specifications:

  • Ethernet: 10BASE-T from any PoE- or IEEE802.3af-compliant Ethernet switch. PoE injector required for use with non-IEEE802.3af-compliant switches
  • Supported LED Nodes or Fixtures: 170 unique lightnumbers (one DMX universe)
  • Playback Output: Six pre-programmed, modifiableeffects
  • Storage: Eight scenes (sets of effects and effectsettings)
  • Housing Dimensions: 4.63" H x 3" W x 1.5"D(118 x 76 x 38 mm)
  • Faceplate Dimensions: 4.63" H x 3" W x 0.13"D (118 x 76 x 3 mm)
  • Weight: 2.06 oz (59 g)
  • Housing: Medium matte white plastic Decora® style faceplate
    Mounts in single-gang wall box
  • Connector / Cable: RJ45 Port, CAT 5e Data Cable (notincluded)
  • Operating Temperature: 14° – 104° F (-10° – 40° C)
  • Humidity: 0 – 95%, non-condensing
  • Certification: FCC Class A, CE
  • Environment: Dry Location, IP40

Philips Color Kinetics 103-000025-00
ColorDial Pro Controller

OUR PART #  103-000025-00

Product Information:

The ColorDialâ„¢ Pro is an Ethernet-based, stand-alone lighting controller and interface for color-changing LED lighting fixtures from Philips Color Kinetics.  Featuring an enhanced LCD screen for configuring effects and simple dial-and-button controls, ColorDial Pro offers fingertip triggering of full-color light shows and dynamic lighting effects.  ColorDial Pro uses Power over Ethernet (PoE) technology to eliminate the need for a separate power source, affording greater freedom of placement, and easy installation.

Philips Color Kinetics 103-000025-00 ColorDial Pro Controller Features:

  • Uses standard Power over Ethernet for increasedflexibility (IEEE 802.3af). Power over Ethernet (PoE) enables electrical powerand data to be transmitted over a single twisted-pair cable. Reducesinstallation costs, decreases required space for wires, and affords freedom ofplacement by eliminating wiring. Works with any PoE-compliant switch or PoEinjector.
  • Mounts in a standard U.S. single-gang wall box. Uses asingle CAT 5e cable for data and power with no additional wiring required.
  • Six onboard effects and eight configurable scenes —ColorDial Pro uses onboard lighting effects, eliminating the need for anexternal data source.
  • Select from six effects. Adjust effect settings suchas color, speed, and intensity as desired.
  • Store up to eight sets of effects and settings asscenes, which you can recall at the touch of a button.
  • User-configurable Custom Wash effect — Smoothlytransitions through two to six colors of your choice. Effect also lets you settransition speed and direction of movement.
  • Expanded addressing — ColorDial Pro controls up to 170unique light addresses, equivalent to one DMX universe.
  • Fingertip dimming and on/off control — Easily adjust brightness from 0% -100%, or turn connected lights on and off.

Philips Color Kinetics 103-000025-00 ColorDial Pro Controller Specifications:

  • Ethernet: 10BASE-T from any PoE- or IEEE802.3af-compliant Ethernet switch. PoE injector required for use with non-IEEE802.3af-compliant switches
  • Supported LED Nodes or Fixtures: 170 unique lightnumbers (one DMX universe)
  • Playback Output: Six pre-programmed, modifiableeffects
  • Storage: Eight scenes (sets of effects and effectsettings)
  • Housing Dimensions: 4.63" H x 3" W x 1.5"D(118 x 76 x 38 mm)
  • Faceplate Dimensions: 4.63" H x 3" W x 0.13"D (118 x 76 x 3 mm)
  • Weight: 2.06 oz (59 g)
  • Housing: Medium matte white plastic Decora® style faceplate
    Mounts in single-gang wall box
  • Connector / Cable: RJ45 Port, CAT 5e Data Cable (notincluded)
  • Operating Temperature: 14° – 104° F (-10° – 40° C)
  • Humidity: 0 – 95%, non-condensing
  • Certification: FCC Class A, CE
  • Environment: Dry Location, IP40
