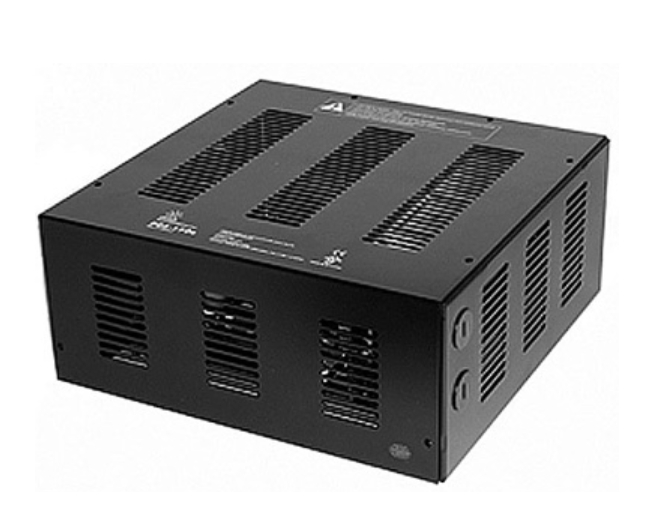

Philips Color Kinetics 109-000008-01
PDS-150e Power/Data Supply for ColorBlast Fixtures

OUR PART #:  109-000008-01

The PDS-150e is an indoor-rated power / data supply designed for LED lighting fixtures employing Chromacore® technology from Philips Color Kinetics.
Learn More

Call for price! Not available online.

Similar Products

The PDS-150e is an indoor-rated power / data supply designed for LED lighting fixtures employing Chromacore® technology from Philips Color Kinetics.

Philips Color Kinetics PDS-150e Features:

  • Compatible with both Ethernet and DMX controllers
  • Delivers 150 watts of total output via six output terminals and automatically accommodates input voltages ranging from 100 VAC to 240 VAC.
  • Short-circuit protection prevents failure due to incorrectly wired fixtures
  • Enclosure complies with National Electrical Code (NEC) requirements. The built-in cooling fan and over-temperature protection circuitry prevent the unit from operating beyond its rated temperature range.
  • 14 pre-formed knockout holes accommodate standard conduit sizes.

Philips Color Kinetics PDS-150e Specifications:

  • Input Voltage: 100 – 240 VAC, auto-switching, 50 / 60Hz
  • Maximum Input Current: 2.8 A at 115 VAC, 1.4 A at 230VAC
  • Power Output: 24 VDC, 150 W maximum
  • Dimensions: 4.4" H x 10.4" W x 10.1"D (112 x 264 x 257 mm)
  • Weight: 8 lbs (3.6 kg)
  • Construction: Painted steel housing, surface mount design
  • Finish: Black matte
  • Connectors:
    • Data: RJ-45 input and output connectors
    • Power Output: (6) terminal blocks
  • Power Input: Terminal block
  • Operating Temperature: 14° – 122° F (-10° – 50° C)
  • Humidity: 0 – 95%, non-condensing
  • Cooling: Cooling fan
  • Airflow: Rear panel input, side panel output
  • Heat Dissipation: 25% of total power input at maximum load
  • Data Input: Philips full range of controllers, third-party DMXcontrollers, or KiNET-compatible* third-party Ethernet controllers
    NOTE: *KiNET™ is the standard Ethernet lighting protocol from Philips Color Kinetics.
  • Certification: UL / cUL, CE, PSE
  • Classification: UL Class 2 power supply
  • Environment: Dry Location, IP20
