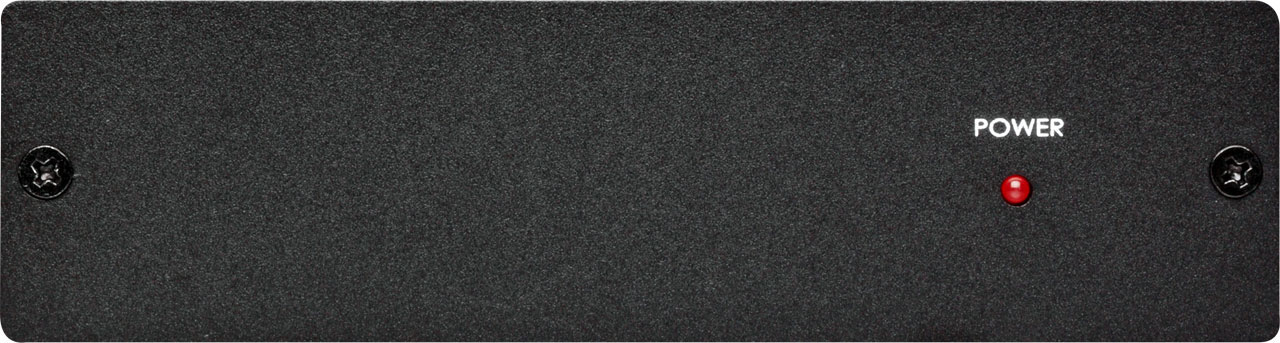

AV Tool VS-226 HDMI Down Converter

VS-226 HDMI to CS/SV/Stereo Down Converter

VS-226 HDMI to CV/SV/Stereo Down Converter converts digital HDMI signals (or a DVI input signal with S/PDIF coaxial audio) to NTSC or PAL analog video signals and also provides a L/R stereo audio output. Besides S-Video and Composite Video outputs, it provides a re-clocked HDMI signal which delivers a jitter free bypassed output of the original HDMI signal. In addition, either a bitstream derived HDMI audio signal or a coaxial input signal is processed and provided to an external audio amplifier via a coaxial S/PDIF digital audio connector. The VS-226 provides a convenient way for the user to watch a high definition television program while also recording it in standard resolution via a DVR or VCR.

The VS-226 automatically detects the HDTV signal’s resolution and is fully compliant with HDMI v1.2, DVI v1.0 and HDCP v1.1 specifications. It has a small footprint and is shipped with an AC to DC power adapter which is provided with locking DC connector for security.

VS-226 Features:

• Automatic Signal Conversion
• HDMI 1.2, HDCP1.1 and DVI1.0 compliant.
• HDMI or DVI HDTV Signals from 480p to 1080p.
• Jitter corrected, Re-Clocked HDMI Bypass signal.
• HDMI or DVI HDTV to NTSC or PAL Conversion.
• Converts HDMMI Bitstream audio to S/PDIF Audio.
• Provides analog L/R Stereo Audio Output.
• Converts PC signals to UXGA/60Hz to NTSC/PAL
