Lectrosonics OCTOPACK Portable Multicoupler for SR Series Receivers

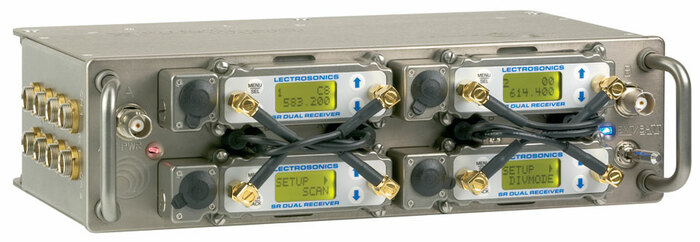

To address an increasing demand for more wireless channels in location production, the Octopack combines up to four SRa Series compact receivers into a lightweight, rugged assembly with self-contained power supply and antenna signal distribution. This powerful production tool provides up to eight audio channels in a tiny package ready to work in applications from production cart to a portable mixing bag.

High quality antenna distribution requires the use of ultra quiet RF amps plus isolated and optimally matched signal paths through the circuitry to ensure equal performance from all connected receivers. In addition, the amplifiers used must be high overload types to avoid generating IM (intermodulation) within the multicoupler itself. Octopack meets these requirements for RF performance.

Features:

• Modular configuration accommodates up to four SRa Series compact receivers
• High performance antenna multicoupler with isolated outputs
• Switchable antenna power for remote coaxial RF amplifiers
• Discrete power distribution with individual protective fusing
• External DC or onboard battery powering
• Automatic power source switching triggered by voltage comparator
• Machined aluminum chassis for sound cart or portable bag use

Specifications:

• RF Bandwidth (3 versions):
  • - Low: 470 to 691MHz
  • - Mid: 537 to 768MHz
  • - High: 640 to 862MHz
• RF Gain: 0 to 2.0dB across bandwidth
• Output Third Order Intercept: +41dBm
• 1dB Compression: +22dBm
• Antenna Inputs: Standard 50Ω BNC jacks
• Antenna Power: Voltage is passed through from main power source; through a 300mA polyfuse
• Receiver RF feeds: 50Ω right angle SMA jacks
• Internal Battery Type: L or M style rechargeable
• External Power Requirement: 8 to 18VDC; 1300mA at 8VDC
• Power Consumption: 1450mA max. with 7.2V battery power; (both antenna power supplies on)
• Internal Battery Override: .5VDC higher than external source
• Dimensions: H 2.75in. x W 10.00in. x D 6.50in. (H 70mm x W 254mm x D 165mm)
• Weight: Assembly only: 2lbs., 9ozs. (1.16kg)
  • - With 4-SRa5P receivers: 4lbs., 6ozs. (1.98kg)

Note:

Batteries not included, external DC only out-of-box.
