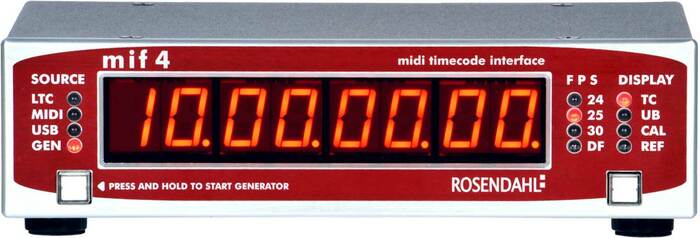

Rosendahl MIF4
MIF4 MIDI Time Code Interface

OUR PART #  MIF4

Our Price: $800.00
(Low Price Guarantee)
In Stock

Digital audio workstations as well as lighting and show control software make use of MTC midi timecode for synchronization. The new mif4 provides professional interfacing to standard LTC (SMPTE) timecode. Rosendahl sync algorithms suppress timecode jitter and drop outs.

  • SOURCE = LTC
    Read LTC (SMPTE) timecode, display and convert into MTC/USB midi time code and regenerate LTC (SMPTE) timecode
  • SOURCE = MIDI
    Read MTC from MIDI input, display and convert into LTC (SMTPE) and regenerate MTC/USB midi timecode
  • SOURCE = GEN
    The timecode generator can be set up and started manually or remote controlled by MMC midi machien control commands
  • FPS
    Timecode standards are automatically detected and displayed by the four FPS LEDs (24, 25, 30 Frames Per Second, DF is SMPTE Drop Frame standard)
  • DISPLAY = TC
    Shows timecode in hours, minutes, seconds and frames
  • DISPLAY = UB
    SMPTE user bits, 8 nibbles shown hexadezimal
  • DISPLAY = CAL
    Informs about timecode speed. 29.97 non drop timecode for example is indicated by 30 FPS LED and calibration 0.990
  • DISPLAY = REF
    PAL or NTSC video syncs (576i, 480i) as well as HD tri-level syncs (720p, 1080i, 1080p) are automatically detected and displayed along with their frame rate
  • Two 1U brackets to fit mif4 into a 19" rack are included.

Rosendahl MIF4
MIF4 MIDI Time Code Interface

OUR PART #  MIF4

Product Information:

Digital audio workstations as well as lighting and show control software make use of MTC midi timecode for synchronization. The new mif4 provides professional interfacing to standard LTC (SMPTE) timecode. Rosendahl sync algorithms suppress timecode jitter and drop outs.

  • SOURCE = LTC
    Read LTC (SMPTE) timecode, display and convert into MTC/USB midi time code and regenerate LTC (SMPTE) timecode
  • SOURCE = MIDI
    Read MTC from MIDI input, display and convert into LTC (SMTPE) and regenerate MTC/USB midi timecode
  • SOURCE = GEN
    The timecode generator can be set up and started manually or remote controlled by MMC midi machien control commands
  • FPS
    Timecode standards are automatically detected and displayed by the four FPS LEDs (24, 25, 30 Frames Per Second, DF is SMPTE Drop Frame standard)
  • DISPLAY = TC
    Shows timecode in hours, minutes, seconds and frames
  • DISPLAY = UB
    SMPTE user bits, 8 nibbles shown hexadezimal
  • DISPLAY = CAL
    Informs about timecode speed. 29.97 non drop timecode for example is indicated by 30 FPS LED and calibration 0.990
  • DISPLAY = REF
    PAL or NTSC video syncs (576i, 480i) as well as HD tri-level syncs (720p, 1080i, 1080p) are automatically detected and displayed along with their frame rate
  • Two 1U brackets to fit mif4 into a 19" rack are included.
