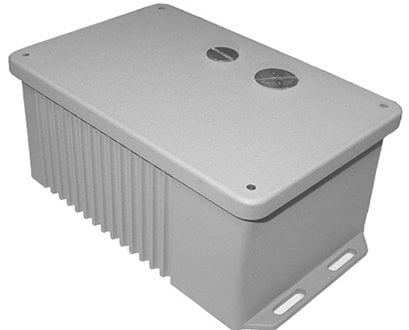

Philips Color Kinetics 109-000017-03
PDS-60 24V DMX/Ethernet Power Supply

OUR PART #  109-000017-03

Our Price: $215.00
(Low Price Guarantee)
Usually ships in 7-14 business days.
Need it sooner? Call us!

The Philips Color Kinetics 109-000017-03 is a versatile power / data supply designed for indoor and outdoor LED lighting installations using fixtures from Philips Color Kinetics.

Philips Color Kinetics 109-000017-03 Features:

  • Compatible with both Ethernet and DMX controllers.
  • Pre-programmed version features built-in visual effects, allowing configurations without Ethernet or DMX controllers.
  • Delivers 62 watts of power output and accommodates input voltages ranging from 100 VAC to 240 VAC.
  • Short-circuit protection prevents device failure due to incorrectly wired fixtures.
  • Featuring a NEMA 4 (IP66) enclosure, installs in dry, damp, and wet locations, and offers multiple standard-size conduit entries to accommodate 1/2" (13 mm)

Philips Color Kinetics 109-000017-03 Specifications:

  • Input Voltage: 100 – 240 VAC, auto-switching, 50 – 60 Hz
  • Maximum Input Current: 1.7 A at 100 VAC, 1.5 A at 120 VAC, .75 A at 240 VAC
  • Power Output: 24 VDC, 62 W maximum
  • Fuse Rating: (2) 4 A, 5 x 20 fast blow fuses
  • Dimensions: 3.6" H x 5.5" W x 8.8" D (91 x 140 x 224mm)
  • Weight: 4.5 lbs (2.0 kg)
  • Construction: Cast aluminum enclosure with slots for surface mounting
  • Finish: Gray matte
  • Connectors:
    • Data: RJ-45 input and output connectors
    • Power / Data Output: 3-pin terminal block
    • Power Input: Line-neutral-ground cable, flying leads
    • Accessory Power: 2-pin spring terminal
  • Operating Temperature: 14° – 104° F (-10° – 40° C)
  • Humidity: 0 – 95%, non-condensing
  • Cooling: Convection
  • Heat Dissipation: 25% of total power input at maximum load
  • Data Input Source: Philips full range of controllers, third-party DMX controllers, or KiNET-compatible* third-party Ethernet controllers
    • *KiNET is the standard Ethernet lighting protocol from Philips Color Kinetics.
  • Certification: UL / cUL, CE, PSE
  • Classification: UL Class 2 power supply
  • Environment: Dry / Damp / Wet Location, IP66

Philips Color Kinetics 109-000017-03
PDS-60 24V DMX/Ethernet Power Supply

OUR PART #  109-000017-03

Product Information:

The Philips Color Kinetics 109-000017-03 is a versatile power / data supply designed for indoor and outdoor LED lighting installations using fixtures from Philips Color Kinetics.

Philips Color Kinetics 109-000017-03 Features:

  • Compatible with both Ethernet and DMX controllers.
  • Pre-programmed version features built-in visual effects, allowing configurations without Ethernet or DMX controllers.
  • Delivers 62 watts of power output and accommodates input voltages ranging from 100 VAC to 240 VAC.
  • Short-circuit protection prevents device failure due to incorrectly wired fixtures.
  • Featuring a NEMA 4 (IP66) enclosure, installs in dry, damp, and wet locations, and offers multiple standard-size conduit entries to accommodate 1/2" (13 mm)

Philips Color Kinetics 109-000017-03 Specifications:

  • Input Voltage: 100 – 240 VAC, auto-switching, 50 – 60 Hz
  • Maximum Input Current: 1.7 A at 100 VAC, 1.5 A at 120 VAC, .75 A at 240 VAC
  • Power Output: 24 VDC, 62 W maximum
  • Fuse Rating: (2) 4 A, 5 x 20 fast blow fuses
  • Dimensions: 3.6" H x 5.5" W x 8.8" D (91 x 140 x 224mm)
  • Weight: 4.5 lbs (2.0 kg)
  • Construction: Cast aluminum enclosure with slots for surface mounting
  • Finish: Gray matte
  • Connectors:
    • Data: RJ-45 input and output connectors
    • Power / Data Output: 3-pin terminal block
    • Power Input: Line-neutral-ground cable, flying leads
    • Accessory Power: 2-pin spring terminal
  • Operating Temperature: 14° – 104° F (-10° – 40° C)
  • Humidity: 0 – 95%, non-condensing
  • Cooling: Convection
  • Heat Dissipation: 25% of total power input at maximum load
  • Data Input Source: Philips full range of controllers, third-party DMX controllers, or KiNET-compatible* third-party Ethernet controllers
    • *KiNET is the standard Ethernet lighting protocol from Philips Color Kinetics.
  • Certification: UL / cUL, CE, PSE
  • Classification: UL Class 2 power supply
  • Environment: Dry / Damp / Wet Location, IP66
