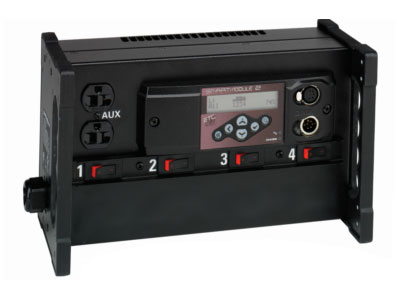

ETC/Elec Theatre Controls SM4-10-A SmartModule 2
4 Circuit, 1x20A Cable In, Dual Edison Out

OUR PART #:  SM4-10-A

SmartModule 2 is ETC’s latest innovation in the Smart Solutions family, giving you next generation dimming for portable or permanent installations without busting your budget.
Learn More
Our Price: $1,040.00
Write the first review.
ETC/Elec Theatre Controls SM4-10-A SmartModule 2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

SmartModule 2 is ETC’s latest innovation in the Smart Solutions family, giving you next generation dimming for portable or permanent installations without busting your budget. Whether mounting SmartModule 2 on a wall, hanging on a pipe or setting up on the floor, museums, schools, rentals, small touring shows and convention centers can have professional-quality dimming with a small price tag.

No complicated setup. No console required. Set up your system and light like a pro. Just plug in and play anytime, anywhere. SmartModule 2 offers local control capabilities and a choice of dimmer curves, as well as 20 pre-programmed chases for unattended operation. And it’s convection cooled: SmartModule 2 operates without fans or filters.

More power! SmartModule 2 can handle twice the number of fixtures on a four-circuit Module with its high-power option. Pair with a SmartBar 2™ for next-generation dimming that is reliable, portable and affordable.

Applications:

  • Applications requiring distributed dimming and positionflexibility:
      -  Industrial productions
      -  Rentalproductions
      -  Convention and conference centers
     -  Museums
      -  Casinos
      -  Discos
  • Multi-use venues:
      -  Gymnasiums
      - Cafetoriums
      -  Multimedia rooms

ETC SM4-10-A SmartModule 2 Features:

  • Option for bi-phase (three-wire plus ground feed)
  • 4 or 6 dimmer models
  • Single-phase 20A 2-wire plus ground feed
  • Three-phase, 20A four-wire plus ground feed
  • Choice of output connectors: Stage Pin, Edison, Twist-Lok
  • Load protection per dimmer –1200W circuit breakers (10A)
  • Stand-alone operation for local control and chase sequences
  • Programmable functions such as non-dim operation and dimmer curves
  • Convection cooled for silent operation
  • Resettable 1200 watt (10A) breaker output protection
  • One duplex Edison convenience outlet
  • RDM Enabled:
      -  DMX512A w/RDM Remote Addressing
  • Smart User Interface:
      -  Graphic level display
     -  Quick setup menus
      -  Button shortcut for manualcontrol
      -  User-selectable dimmer curves
      -  20chases (preprogrammed sequences)
