West Penn 357-BY-THE-FOOT
Wire, 4 Conductors, 22 gauge, Stranded

OUR PART #  357-BY-THE-FOOT

Our Price: $0.27
List Price: $0.38
Save up to 55% when you order by quantity!
Buy 50 @ $0.21 ea.
Buy 200 @ $0.20 ea.
Buy 400 @ $0.17 ea.
(Low Price Guarantee)
In Stock

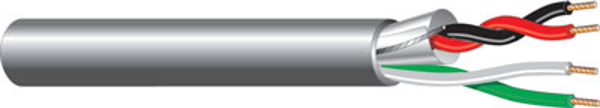

This 22/4 stranded tinned copper conductor wire is ideal for intercom, security, sound, audio, background music and power limited control circuit applications. Available in increments of 1 foot.

Specifications

Construction Parameters

  • Conductor: 22 AWG Tinned Copper
  • Stranding: 7 x 30
  • Insulation Material: PVC
  • Insulation Thickness: 0.007" Nom.
  • Number of Conductors: 4 (2 shielded, 2 unshielded)
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.017" Nom.
  • Overall Cable Diameter: 0.162" Nom
  • Approximate Cable Weight: 18.2lbs/1M' Nom
  • Flame Rating: UL 1666 Riser Flame Test

Electrical & Environment Properties

  • Temperature Rating: -4°F to +140°F
  • Operating Voltage: 300V RMS
  • Max Capacitance Between Conductors @ 1kHz: 55pf/ft nom.
  • Capacitance Between Conductors to Shield @ 1kHz: 99pf/ft Nom
  • DC Resistance per Conductor @ 68°F: 16.4 Ohms.1M' Nom
  • Insulation Colors: Shielded: Black, Red / Unshielded: White, Green
  • Jacket Color: Gray
  • RoHS Compliant: Yes

Mechanical Properties

  • Max Recommended Pull Tension: 42lbs
  • Min Bend Radius (install): 1.8"



West Penn 357-BY-THE-FOOT
Wire, 4 Conductors, 22 gauge, Stranded

OUR PART #  357-BY-THE-FOOT

Product Information:

This 22/4 stranded tinned copper conductor wire is ideal for intercom, security, sound, audio, background music and power limited control circuit applications. Available in increments of 1 foot.

Specifications

Construction Parameters

  • Conductor: 22 AWG Tinned Copper
  • Stranding: 7 x 30
  • Insulation Material: PVC
  • Insulation Thickness: 0.007" Nom.
  • Number of Conductors: 4 (2 shielded, 2 unshielded)
  • Shield: 100% Aluminum Polyester Foil
  • Drain: Stranded Tinned Copper
  • Jacket Material: PVC
  • Jacket Thickness: 0.017" Nom.
  • Overall Cable Diameter: 0.162" Nom
  • Approximate Cable Weight: 18.2lbs/1M' Nom
  • Flame Rating: UL 1666 Riser Flame Test

Electrical & Environment Properties

  • Temperature Rating: -4°F to +140°F
  • Operating Voltage: 300V RMS
  • Max Capacitance Between Conductors @ 1kHz: 55pf/ft nom.
  • Capacitance Between Conductors to Shield @ 1kHz: 99pf/ft Nom
  • DC Resistance per Conductor @ 68°F: 16.4 Ohms.1M' Nom
  • Insulation Colors: Shielded: Black, Red / Unshielded: White, Green
  • Jacket Color: Gray
  • RoHS Compliant: Yes

Mechanical Properties

  • Max Recommended Pull Tension: 42lbs
  • Min Bend Radius (install): 1.8"
