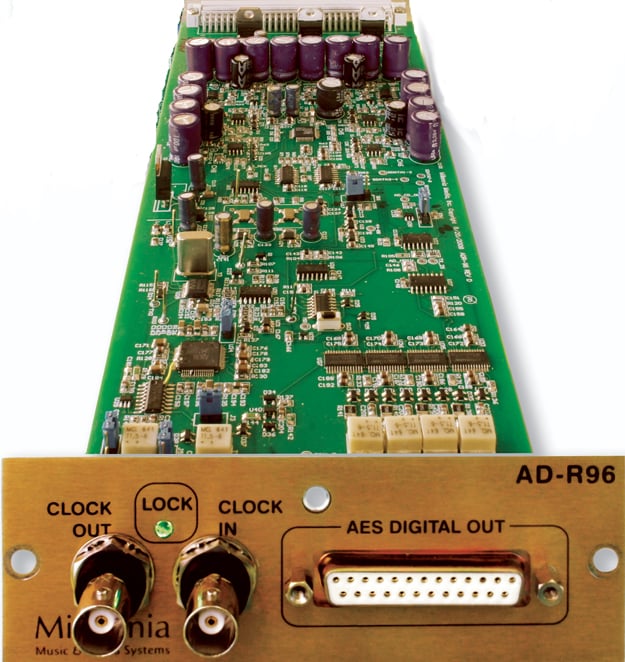

Millennia Media Inc AD-R96
Digital Output Converter Option for HV-3D, HV-3R

OUR PART #:  AD-R96

Our Price: $1,349.99
List Price: $1,500.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Millennia Media Inc AD-R96
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Features:

  • Eight channels of A/D Conversion
  • 24-bit 96 kHz eight-channel AES format converter
  • Internal/External Clocking with AES or Wordclock in/out on BNC connecters
  • DB25 Connector that conforms to the Tascam wiring standard
  •  -18dBFS reference level
  • All HV-3D/HV-3R units can have the option installed

Excerpted from the AD-R96 User Guide:

  • Static electricity can harm delicate components on the AD-R96 board.  To prevent static damage, discharge static electricity from your body before you touch any electronic components.  You can do so by touching an unpainted metal surface on the HV-3R's chassis.
  • Unplug the HV-3R's AC power cord before inserting or removing the AD-R96 board
    Clocks.  The AD-R96 should have only one clock source.  If running with the internal clock, make sure SW4 is in the INT position and no external clock is connected.
  • Sync Signals on the BNC connectors should conform to the AES-3id specification.  AES-3, through an XLR-to-BNC transformer (Neutrik NADITBNC-F or equivalent) will work fine.  S/PDIF works, but is not specified.
