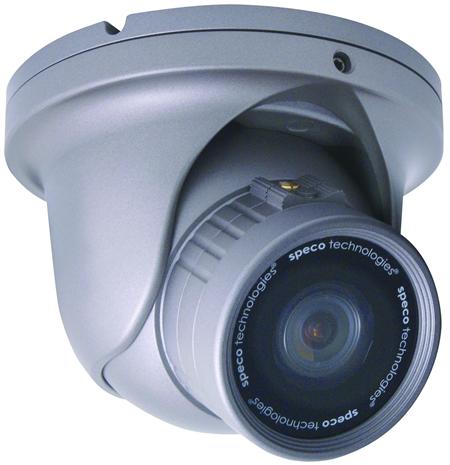

Speco Technologies HTINTD9


Speco's intensifier 2 series weatherproof dome cameras allow you to see in the dark without IR LEDs.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

Speco's intensifier 2 series weatherproof dome cameras allow you to see in the dark without IR LEDs.


  • Weatherproof operation, IP-67
  • Tamper resistant
  • Amplifies existing light with no distance limitations
  • No problems caused by objects that relfect or absorb IR light sources
  • 580 lines of resolution
  • Minimum illumination of 0.002 lux (Intensifier @ 256x)
  • Featuring HLC for enhanced backlight operation
  • Digital Image Stabilization
  • Advanced noise reduction circuitry eliminates blur
  • Relay outputs for built-in video motion detection
  • Dual voltage 12VDC & 24VAC operation
  • Full OSD operation
  • External controls for zoom and focus
  • SLC - Speco Light Compensation
  • S/N Ratio more than 52dB (weight on)
  • EZ mount system simplifies installation
  • Wall & ceiling mountable


  • Image Pick-Up Device: 1/3" Sony Super-HAD CCD - 410K
  • Resolution: 580 TV lines
  • Minimum Illumination: 0.002 lux - (intensifier @ 256x)
  • S/N Ratio: More than 52dB (weight on)
  • White Balance: ATW/AWC/MANUAL (1800K - 10,500K)
  • Video Output: Composite video 10Vp-p into 75 Ohm + test connection
  • Electronic Shutter: Auto/Manual (1/60 - 1/120,000 seconds)
  • On Screen Display (OSD): Built-in - controlled by internal buttons
  • Motion Detection: 8 zones - relay buttons
  • HLC/SLC (Speco Light Compensation): Advanced backlighting controls
  • Auto Gain: Low, Middle, High, Off, Selectable
  • S-DNR Video Noise Reduction: Low, Middle, High, Off, Selectable
  • Day & Night (Color): On / Auto Selectable
  • Sharpness: On / Off (Level Adjustable)
  • Privacy: On / Off (8 Programmable Zones)
  • Power Supply: 24 Volts AC, 12 Volts DC - Dual Voltage
  • Power Consumption: 250mA
  • Lens: DC Auto Iris Varifocal Lens (2.8-12mm, 5-50mm or 9-22mm)
  • Total Pixels: 811(H) x 508(V)
  • Effective Pixels: 768(H) x 494(V)
  • Scanning Frequency: 15.734kHz(H) / 59.94Hz(V)
  • Scanning System: 2:1 Interlace
  • Synchronization: Internal /  Line loc in 24VAC
  • Operating Temperature: -20°F to 120°F - RH 95% Max.
  • Storage Temperature: -40°F to 140°F - RH 95% Max.
  • TV System: NTSC
  • Dimensions: 5.5"W x 4.4"H x 5.5"D
  • Weight 3 lbs
