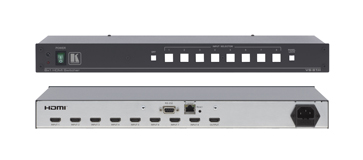

Kramer VS-81H/VS-81HDMI/ 110V 8x1 HDMI Switcher

The VS-81H is a high-performance switcher for HDMI signals. It reclocks and equalizes the signal and switches one of the 8 inputs to a single HDMI output.

Features

• Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
• HDCP Compliant.
• HDTV Compatible.
• HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC).
• 3D Pass-Through.
• I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
• Dual Mode - PC and DVD Modes selectable by input.
• Flexible Control Options - Front panel, RS-232 (K-Router™ Windows®-based software is included), Ethernet & IR remote (included).
• Video Disconnect.
• Front Panel Lockout.
• Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
• Worldwide Power Supply - 100-240V AC.
• Standard 19” Rack Mount Size - 1U. Rack "ears" included.

Specifications

• Input: 8 HDMI Connectors.
• Output: 1 HDMI Connector.
• Bandwidth: Supports up to 6.75Gbps (2.25Gbps bandwidth per graphic channel).
• Compliance with HDMI Standard: Supports HDMI and HDCP.
• Resolution: Up to UXGA; 1080p, deep color.
• Power Source: 100-240V AC, 50/60Hz, 12VA.
• Controls: Front panel buttons, infrared remote control port, RS-232, Ethernet.
• Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
• Weight: 5.5 lbs (2.5 kg) approx.
• Accessories: Power cord, RC-IR3 remote control transmitter.
