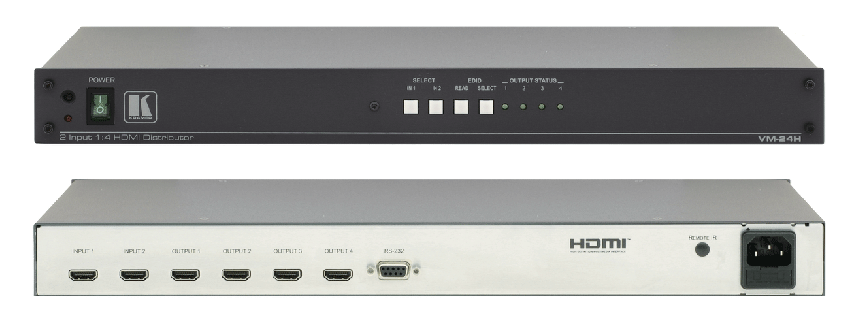

Kramer VM-24H
2 x 1:4 HDMI Distribution Amplifier

OUR PART #:  VM24H

The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of 2 selectable input signals and distributes it to 4 identical outputs.
Learn More
Our Price: $556.00
List Price: $695.00
You save 20%!
Write the first review.
Kramer VM-24H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The VM-24H is a distribution amplifier for HDMI signals. The unit reclocks and equalizes one of 2 selectable input signals and distributes it to 4 identical outputs.

Features:

  • Max. Data Rate - 2.25Gbps.
  • HDTV Compatible.
  • HDCP Compliant.
  • HDMI Support - HDMI (V.1.4 with Deep Color, x.v.Color™, Lip Sync, CEC).
  • 3D Pass-Through.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Active Output LED Indicators.
  • Control - Front panel, RS-232, IR switching.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19” Rack Mount Size - 1U. Rack “ears” included.

Specifications:

  • Inputs: 2 HDMI connectors.
  • Outputs: 4 HDMI connectors.
  • Bandwidth: Supports up to 2.25Gbps bandwidth per graphic channel.
  • Compliance with HDMI Standard: Supports HDMI and HDCP.
  • Controls: EDID SELECT, EDID READ, IN 1, IN 2 buttons, RS-232, IR.
  • Indicator LEDs: Output status LEDs.
  • Power Source: 100-240V AC, 50/60Hz, 16VA.
  • Dimensions: 19" x 7" x 1U W, D, H, rack mountable.
  • Weight: 5.5lbs (2.5kg) approx.
  • Accessories: Power cord, null-modem adapter, Windows®-based control software, IR remote control.
  • Options: External remote IR receiver cable.
